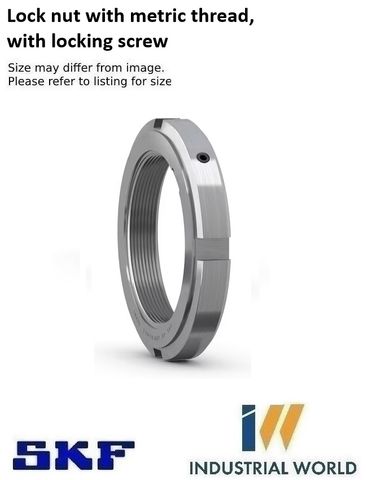

SKF - Metric Lock Nut with locking screw

( M30 X 1.5 ) Min Buy: 5
Stock Code:
KMFE6_SKF
$52.27 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMFE 6

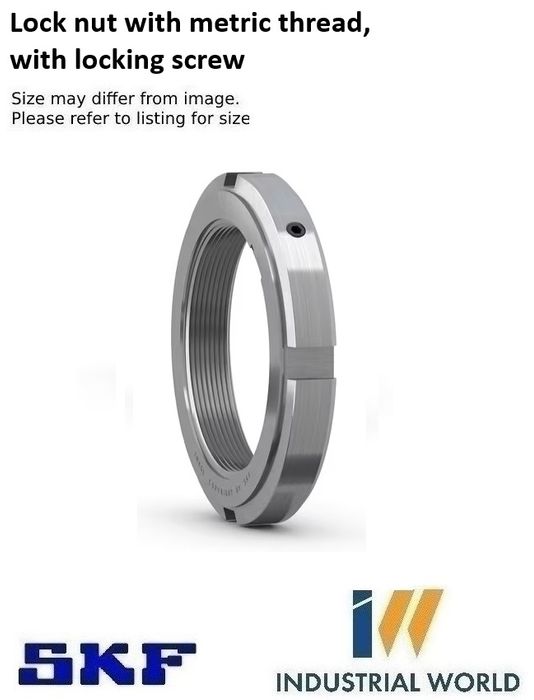

Lock nut with metric thread, with locking screw

KMFE lock nuts with integral locking screw are designed to locate CARB toroidal roller bearings, sealed spherical roller bearings and sealed self-aligning ball bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. Maximum axial run-out locating face and thread 0.02 to 0.03 mm.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 20x1 to M 200x3 (sizes 4 to 40)

Dimensions

Thread designationM30x1.5
Bore diameter30 mm
Outside diameter45 mm
Width10.5 mm

Properties

Locking deviceIncorporated in the lock nut
Nut for hydraulic mountingNo
Associated mounting toolHN 5-6

Logistics

Product net weight0.058 kg
eClass code23-11-07-05
UNSPSC code31163218


Click here for catalogue information

View product table

Click here for product catalogue PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M30x1.5
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Grub Screw Lock
