SKF Solid Oil Deep Groove Ball Bearing NSF H1 Food

20 x 42 x 12
Stock Code:
6004-2RS/W64F_SKF
$153.35 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6004-2RSH/W64F

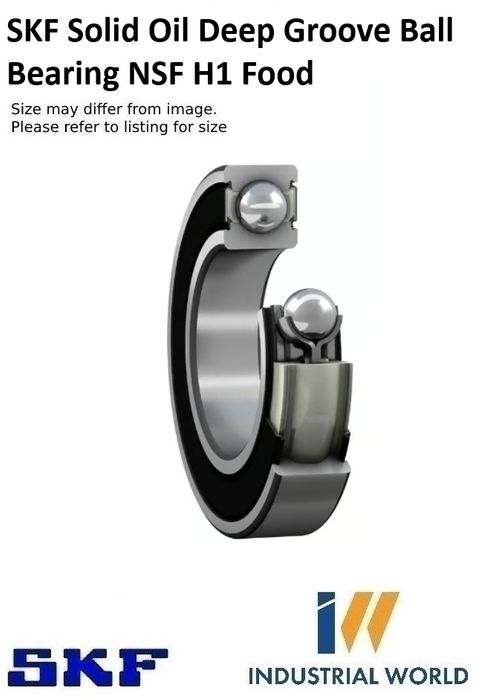

SKF Solid Oil Deep Groove Ball Bearing NSF H1 Food

20 mm ID x 42 mm OD x 12 mm Width

Instead of standard grease lubrication, the bearings contain an oil-filled polymermatrix. This SKF technology is known as Solid Oil and is particularly suitable for bearings used in locations that are likely to be heavily exposed to dirt, dust and water.

The polymer material is moulded into the free space of the bearing, forming a narrow gap around the rolling elements and raceways, enabling the bearing to rotate freely. The polymer matrix has a porous structure, with millions of micro-pores, that hold the lubricating oil retained by surface tension. In operation, oil is released from the material into the narrow gaps between it and the bearing components, thus providing effective minimum quantity lubrication.


Specifications

  • Bore Type Straight
  • Bore Diameter 20 mm
  • Outside Diameter 42 mm
  • Contact Angle Not Applicable
  • Overall Width 12 mm
  • Closure Type Double Sealed
  • Snap Ring Included Without Snap Ring
  • Internal Clearance CN
  • Operating Temperature Range 0 °F to 185 °F
  • Cage Type Sheet metal
  • Precision Rating ABEC 3
  • Finish Coating Uncoated
  • Bearing Material Bearing steel
  • Cage Material Bearing steel
  • Inner Ring Width 12 mm
  • Element Material Bearing steel
  • Series 60
  • Radial Dynamic Load Capacity 2240 lbf
  • Radial Static Load Capacity 1120 lbf

View product table

Click here for solid oil bearings product catalogue

Click here for additional catalogue


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    20 mm
  • Material:
    Chrome steel
  • Width:
    12 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    2RS - Rubber Seal - Both Sides
  • Diameter Outside:
    42 mm
  • Style:
    Soilid Oil - Food Grade
