SKF - Metric Lock with integral locking device

( M50 X 1.5 ) AN10
Stock Code:
KMK10_SKF
$91.72 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMK 10

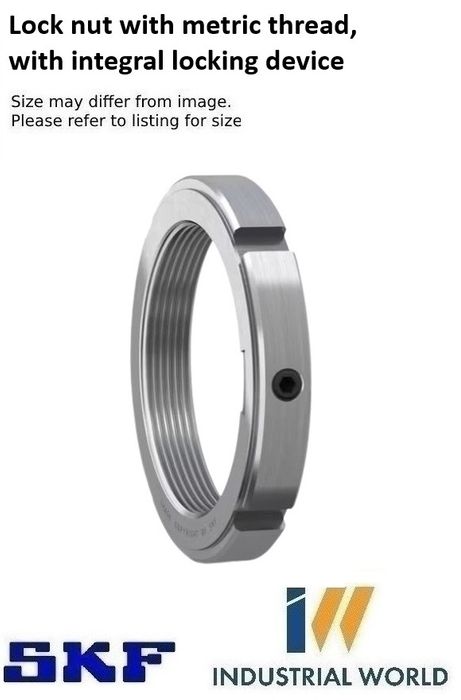

Lock nut with metric thread, with integral locking device

KMK lock nuts with integral locking are designed to locate radial bearings in less demanding applications. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. KMK lock nuts have a threaded steel insert in their bore that acts as a pressure plate when a set screw, which runs through the body of the lock nut, is tightened.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 10x0.75 to M 100x2 (sizes 0 to 20)
DIMENSIONS
Thread designation
M 50x1.5
Bore diameter
50mm
Outside diameter
70mm
Width
15mm
PROPERTIES
Locking device
Incorporated in the lock nut
Nut for hydraulic mounting
No
Associated mounting tool
HN 10-11
LOGISTICS
EAN code
07316570965087
Pack code
12
Products per pack
1
Collecting pack quantity
45
Products per pallet
720
Pack gross weight
0.193kg
Pack length
78mm
Pack height
77mm
Pack width
27mm
Pack volume
0.16dm³
Product net weight
0.18kg
eClass code
23-11-07-05
UNSPSC code
31163218
Export control indicator
Normal
RECOMMENDED TOOL
Hook spannerHN 10-11

Hook spanner for use inside split plummer (pillow) block housingsHN 10/SNL

Adjustable hook spannerHNA 9-13

Axial lock nut socketTMFS 10

Bearing lock nut spanners setTMHN 7


View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M50x1.5
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Grub Screw Lock
