SKF - Metric Lock with integral locking device

( M65 X 2 ) AN13
Stock Code:
KMK13_SKF
$118.60 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMK 13

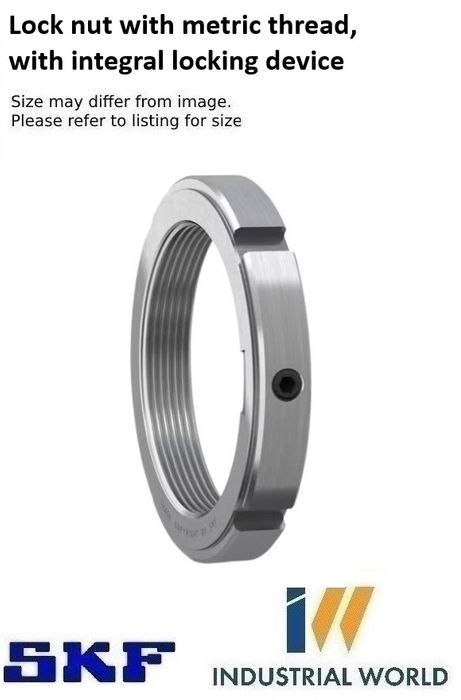

Lock nut with metric thread, with integral locking device

KMK lock nuts with integral locking are designed to locate radial bearings in less demanding applications. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. KMK lock nuts have a threaded steel insert in their bore that acts as a pressure plate when a set screw, which runs through the body of the lock nut, is tightened.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 10x0.75 to M 100x2 (sizes 0 to 20)

Dimensions

Thread designationM 65x2
Bore diameter65 mm
Outside diameter85 mm
Width14 mm

Properties

Locking deviceIncorporated in the lock nut
Nut for hydraulic mountingNo
Associated mounting toolHN 12-13

Logistics

Product net weight0.27 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for catalogue information

View product table

Click here for product catalogue PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M65x2
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Grub Screw Lock
