Conversion Chart

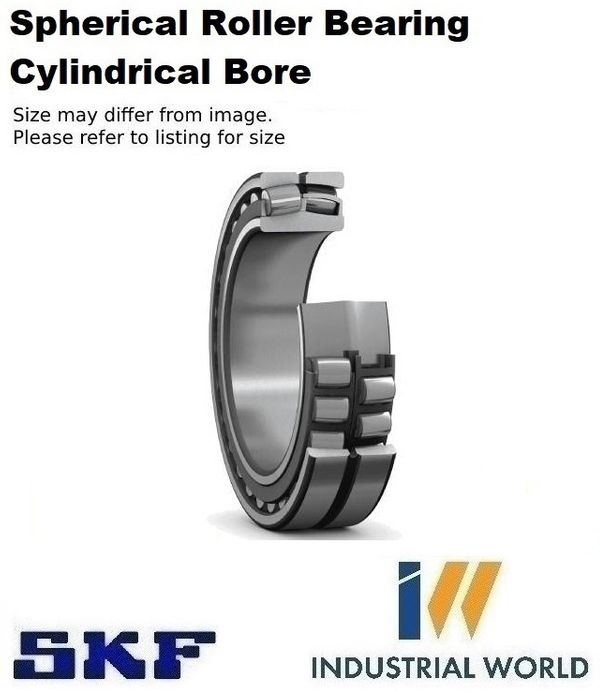

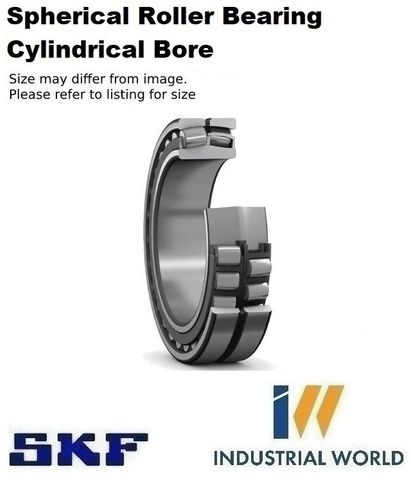

SKF - Spherical Roller Bearing Cylindrical Bore

180 x 280 x 100
Stock Code:
24036CC-W33-C3_SKF
$1,644.15 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

24036 CC/W33
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter180 mm
Outside diameter280 mm
Width100 mm

Performance

Basic dynamic load rating1 134 kN
Basic static load rating1 730 kN
Reference speed1 500 r/min
Limiting speed2 200 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes
Indicative carbon footprint for new product80.1 kg CO2e
Indicative carbon footprint for remanufactured product28 kg CO2e

Logistics

Product net weight22.2 kg
eClass code23-05-09-11
UNSPSC code31171510


Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    180 mm
  • Material:
    Chrome Steel
  • Width:
    100 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Cylindrical Bore
  • Size:
    24036
  • Diameter Outside:
    280 mm
