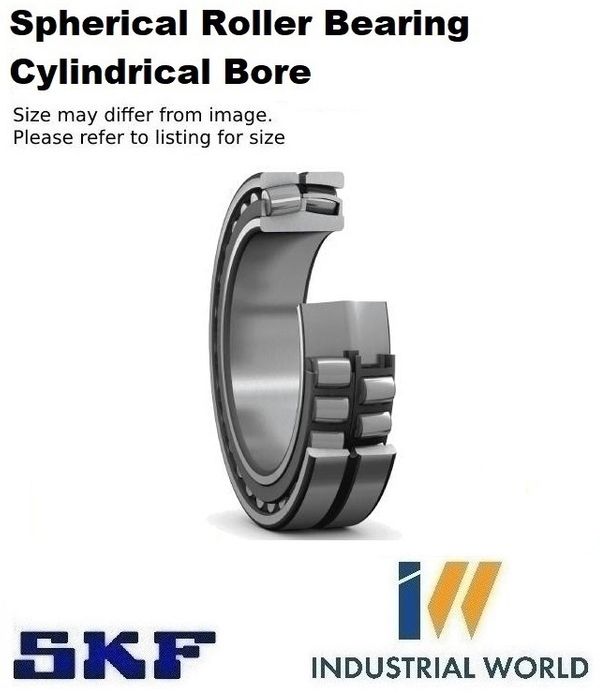

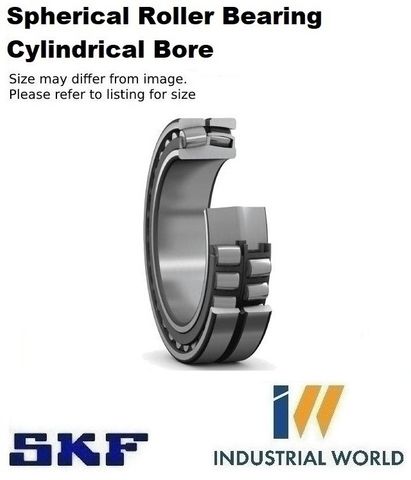

SKF - Spherical Roller Bearing Cylindrical Bore

160 x 270 x 109
Stock Code:
24132CC-W33_SKF
$1,800.07 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

24132 CC/W33
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter160 mm
Outside diameter270 mm
Width109 mm

Performance

Basic dynamic load rating1 227 kN
Basic static load rating1 760 kN
Reference speed1 300 r/min
Limiting speed1 900 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes
Indicative carbon footprint for new product89.4 kg CO2e
Indicative carbon footprint for remanufactured product31.3 kg CO2e

Logistics

Product net weight24.8 kg
eClass code23-05-09-11
UNSPSC code31171510


Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    160 mm
  • Material:
    Chrome Steel
  • Width:
    109 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    24132
  • Diameter Outside:
    270 mm
