SKF ANGULAR CONTACT BALL BEARING 4 POINT CONTACT

170 X 360 X 72
Stock Code:
QJ344N2MA_SKF
$5,313.31 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

QJ 344 N2MA

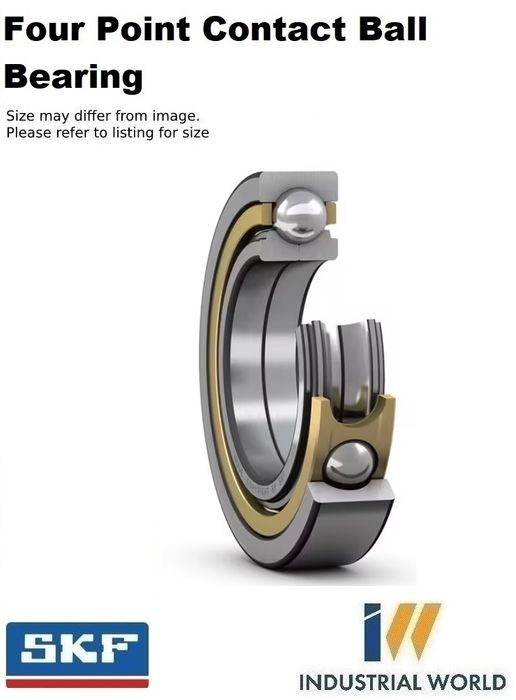

Four-point contact ball bearing with locating slots

Four-point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
  • High-speed capability
  • Accommodate high axial loads in both directions and small radial loads
  • Require considerably less axial space than double row angular contact ball bearings
  • The locating slots can be used to prevent the outer ring from rotating

Dimensions

Bore diameter220 mm
Outside diameter460 mm
Width88 mm
Contact angle35 °

Performance

Basic dynamic load rating780 kN
Basic static load rating1 400 kN
Limiting speed2 400 r/min

Properties

Contact typeFour-point contact
Number of rows1
Locating feature, bearing outer ringLocating slot
Ring typeTwo-piece inner ring and one-piece outer ring
CageMachined brass
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product281 kg CO2e

Logistics

Product net weight78 kg
eClass code23-05-08-05
UNSPSC code31171531

Click here for catalogue information

View product table

View product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    140 mm
  • Width:
    72 mm
  • Brand:
    SKF
  • Metric/Imperial:
    METRIC
  • Type:
    Brass Cage
  • Size:
    QJ344
  • Diameter Outside:
    360 mm
  • Style:
    Four Point Contact
