SKF CYLINDRICAL ROLLER BEARING

180 X 380 X 126
Stock Code:
NU2336ECML-C3_SKF
$10,998.90 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description



NU 2336 ECML C3

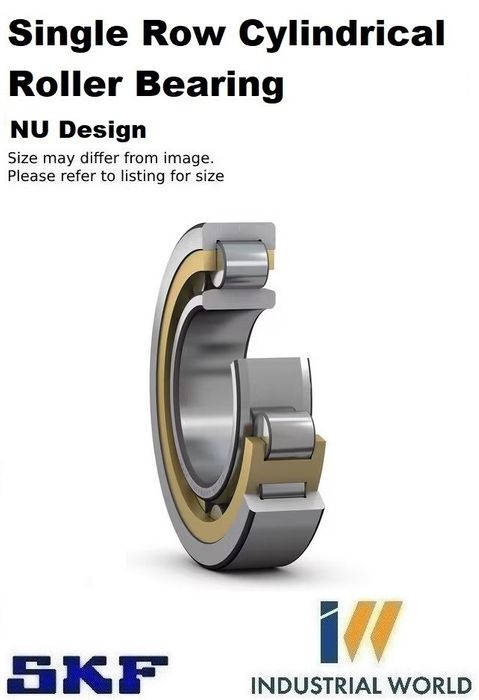

Single row cylindrical roller bearing, NU design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Dimensions

Bore diameter180 mm
Outside diameter380 mm
Width126 mm

Performance

Basic dynamic load rating1 610 kN
Basic static load rating2 240 kN
Reference speed1 600 r/min
Limiting speed3 200 r/min

Properties

Bearing partComplete bearing
Axial displacement capabilityIn both directions
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageMachined brass
Number of flanges, outer ring2
Number of flanges, inner ring0
Loose flangeNone
Radial internal clearanceC3
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Candidate for remanufacturingYes
Indicative carbon footprint for new product250 kg CO2e
Indicative carbon footprint for remanufactured product87.4 kg CO2e

Logistics

Product net weight69.4 kg
eClass code23-05-09-01
UNSPSC code31171505

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    180 mm
  • Material:
    Chrome Steel
  • Width:
    126 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Brass Cage
  • Size:
    2336
  • Diameter Outside:
    380 mm
  • Style:
    fixed Outer Ring (NU)
