Conversion Chart

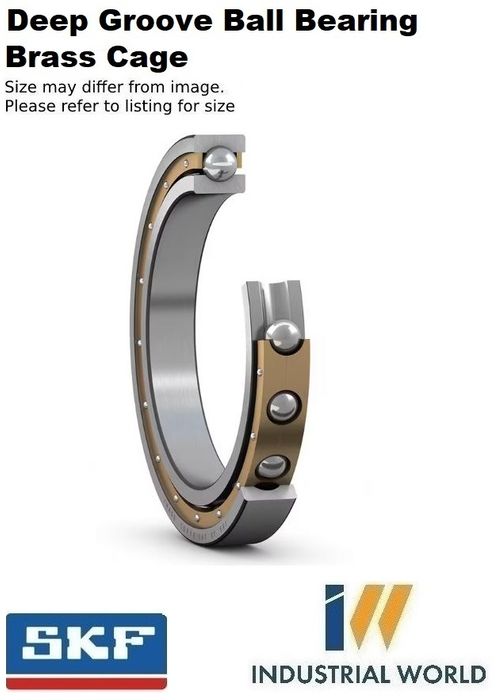

SKF DEEP GROOVE BALL BEARING

200 X 310 X 51
Stock Code:
6040-M-C3_SKF
$2,509.77 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6040 M/C3
Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter200 mm
Outside diameter310 mm
Width51 mm

Performance

Basic dynamic load rating216 kN
Basic static load rating245 kN
Reference speed4 300 r/min
Limiting speed3 600 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageMachined brass
Matched arrangementNo
Radial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Candidate for remanufacturingYes
Indicative carbon footprint for new product51.5 kg CO2e
Indicative carbon footprint for remanufactured product18 kg CO2e

Logistics

Product net weight14.3 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for catalogue information

Click here to view product table

Click here for product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    200 mm
  • Material:
    Chrome steel
  • Width:
    51 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Open
  • Diameter Outside:
    310 mm
  • Style:
    Machined brass cage
