SELF ALIGNING BALL BEARING

Stock Code:
1222-K_SKF
$368.59 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

1222 K

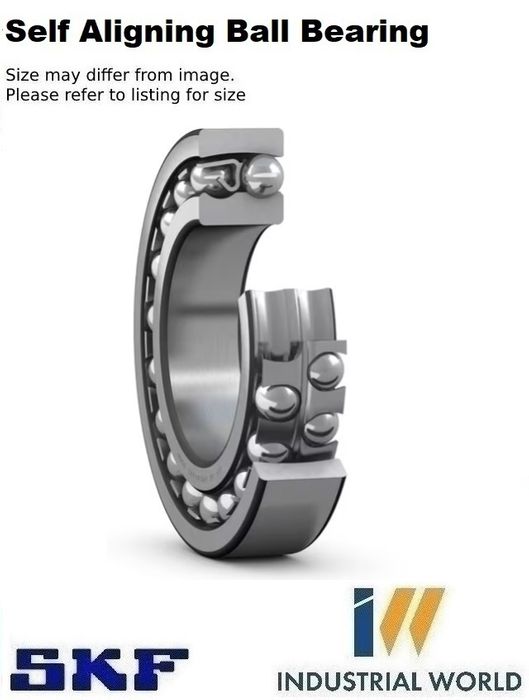

Self-aligning ball bearing with tapered bore

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

  • Ease of mounting via adapter sleeves or withdrawal sleeves
  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction

Dimensions

Bore diameter110 mm
Outside diameter200 mm
Width38 mm

Performance

Basic dynamic load rating88.4 kN
Basic static load rating39 kN
Reference speed6 700 r/min
Limiting speed4 300 r/min

Properties

Retaining feature, inner ringNone
Locating feature, bearing outer ringWithout
Number of rows2
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceCN
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product18.2 kg CO2e

Logistics

Product net weight5.05 kg
eClass code23-05-08-06
UNSPSC code31171532

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    100 mm
  • Material:
    Chrome Steel
  • Width:
    38 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    tapered bore (K)
  • Size:
    1222
  • Diameter Outside:
    200 mm
  • Style:
    OPEN
