SKF - Self Aligning D/ Row Ball Brg Tapered Bore

50 x 90 x 23 (2210 E-2RS1KTN9)
Stock Code:
2210-E-2RS-TN9_SKF
$93.70 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

2210 E-2RS1KTN9

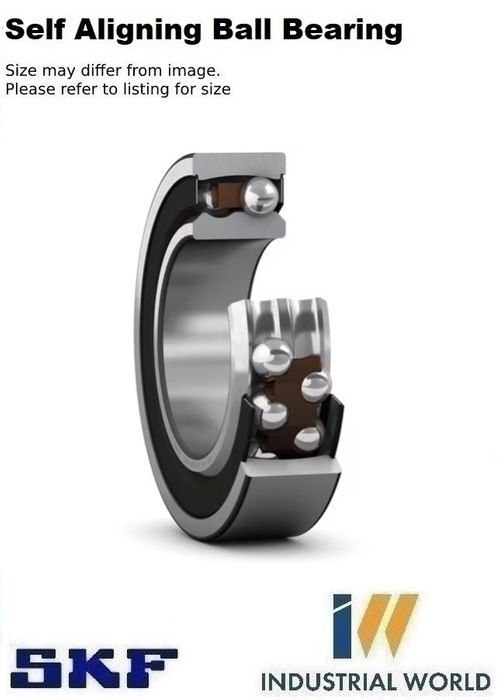

Self-aligning ball bearing with tapered bore and seals on both sides

Self-aligning ball bearings, with a tapered bore and seals on both sides, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The tapered bore facilitates ease of mounting via adapter/withdrawal sleeves. The integral sealing can prolong bearing service life by keeping lubricant in the bearings and contaminants out.

  • Ease of mounting via adapter/withdrawal sleeves
  • Accommodate static and dynamic misalignment
  • Excellent high-speed and light load performance
  • Low friction
  • Integral sealing results in reduced maintenance requirements and prolonged bearing service life

Dimensions

Bore diameter50 mm
Outside diameter90 mm
Width23 mm

Performance

Basic dynamic load rating22.9 kN
Basic static load rating8.15 kN
Reference speed14 000 r/min
Limiting speed4 800 r/min

Properties

Retaining feature, inner ringNone
Locating feature, bearing outer ringWithout
Number of rows2
Bore typeTapered 1:12
CageNon-metallic
Radial internal clearanceCN
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout
Indicative carbon footprint for new product2.1 kg CO2e

Logistics

Product net weight0.569 kg
eClass code23-05-08-06
UNSPSC code31171532

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50 mm
  • Material:
    Chrome Steel
  • Width:
    23 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    parallel bore
  • Size:
    2210
  • Diameter Outside:
    90 mm
  • Style:
    Sealed (2 Rubber Seals)
