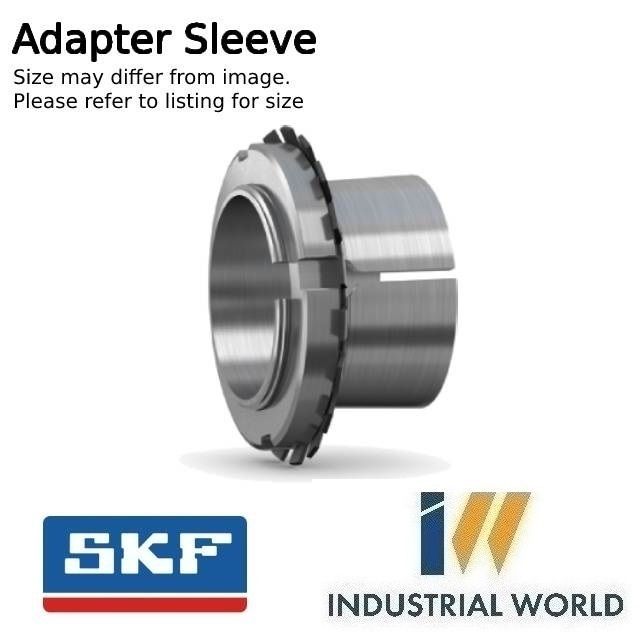

SKF - Adapter Sleeve 5 in (127 mm) Bore

Nut= KML28 Washer= MBL28
Stock Code:
HE3128L_SKF
$564.99 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order

Description

HE 3128 L
Adapter sleeve with KM lock nut and MB lock washer, metric dimensions with inch bore

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Dimensions

Bore diameter127 mm
Width97 mm
Thread designationM140x2

Properties

Taper1:12
Holes for oil injectionWithout

Logistics

Product net weight4.12 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for catalogue information

Details

  • Bore Size:
    127.00 mm (5 Inch)
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Chain Series:
    HE31
  • Style:
    Standard
