SKF Hybrid Ceramic - Deep Groove Ball Bearing

60 x 110 x 22 (6212-2RS1/HC5C3WT)
Stock Code:
6212-2RS-HC5-C3-WT_SKF
$1,388.82 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

6212-2RS1/HC5C3WT

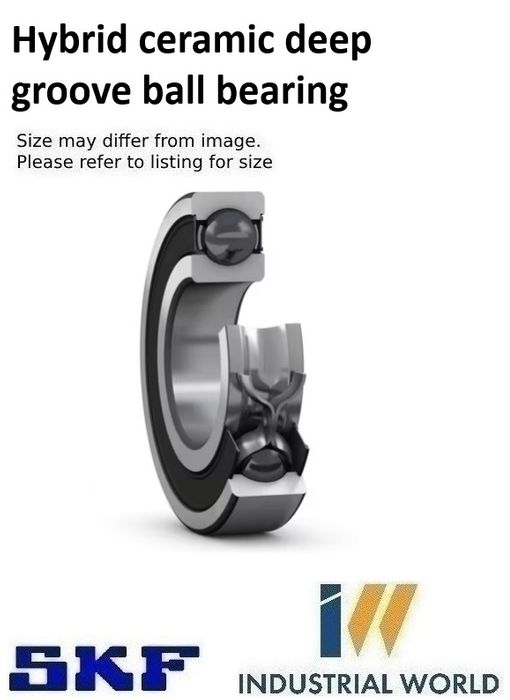

Hybrid ceramic deep groove ball bearing with seals on both sides

Hybrid ceramic single row deep groove ball bearings with seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

  • Protected against electric current damage
  • Integral sealing prolongs bearing service life
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings

Dimensions

Bore diameter60 mm
Outside diameter110 mm
Width22 mm

Performance

Basic dynamic load rating52.7 kN
Basic static load rating36 kN
Limiting speed4 000 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceC3
Material, bearingHybrid (ceramic balls)
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout
Indicative carbon footprint for new product2.6 kg CO2e

Logistics

Product net weight0.713 kg
eClass code23-05-08-01
UNSPSC code31171504



Click here for catalogue information

View product table

View hybrid ceramic deep groove ball bearing information

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    60 mm
  • Material:
    Ceramic Balls
  • Width:
    22 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2RS - Rubber Seal - Both Sides
  • Diameter Outside:
    110 mm
  • Style:
    Hybrid (Electrical Insulated)
