SKF - Sealed Double Row Cylindrical Roller Bearing

Full Compliment 85 x 130 x 60 (NNF 5017 ADA-2LSV)
Stock Code:
NNF5017-ADA-2LSV_SKF
$643.02 incl GST

Stock Locations

  • Ballarat:
    8 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NNF 5017 ADA-2LSV

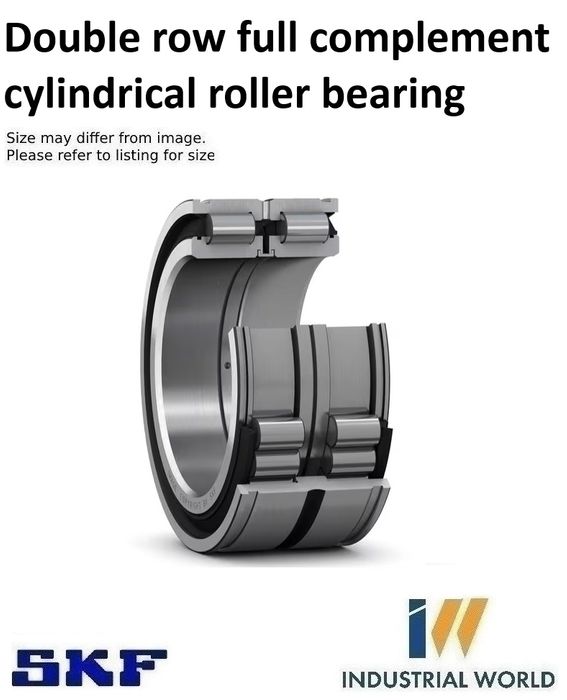

Double row full complement cylindrical roller bearing, NNF design, with integral sealing and relubrication feature

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in both directions
  • Sealed for increased reliability, with relubrication feature

Dimensions

Bore diameter85 mm
Outside diameter130 mm
Width60 mm

Performance

Basic dynamic load rating270 kN
Basic static load rating430 kN
Limiting speed1 000 r/min

Properties

Bearing partComplete bearing
Axial displacement capabilityNone
Number of rows2
Locating feature, bearing outer ringSnap ring groove
Bore typeCylindrical
CageWithout
Number of flanges, outer ring1
Number of flanges, inner ring2
Loose flangeNone
Radial internal clearanceCN
Tolerance classNormal
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWith
Indicative carbon footprint for new product9.9 kg CO2e

Logistics

Product net weight2.75 kg
eClass code23-05-09-01
UNSPSC code31171505

Click here for catalogue information

View product table

Click here for product guide

Click here for full compliment double row cylindrical roller bearing catalogue


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    85 mm
  • Material:
    Chrome Steel
  • Width:
    60 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Full Complement
  • Size:
    5017
  • Diameter Outside:
    130 mm
  • Style:
    Full Compliment (NNF)
