Conversion Chart

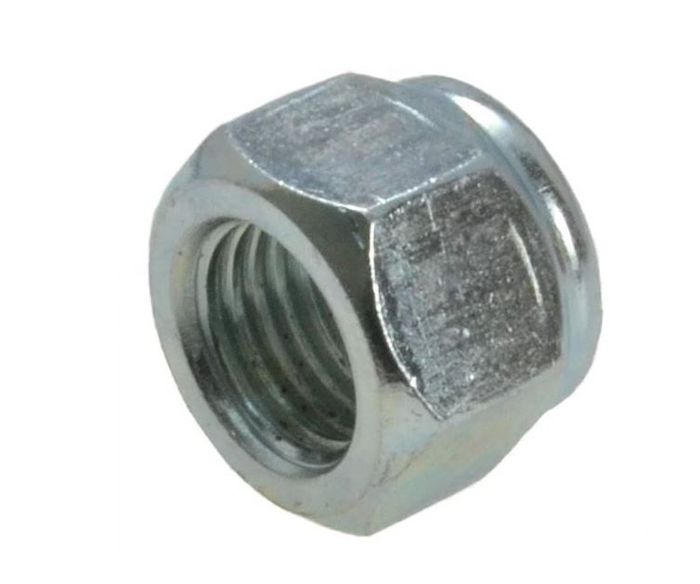

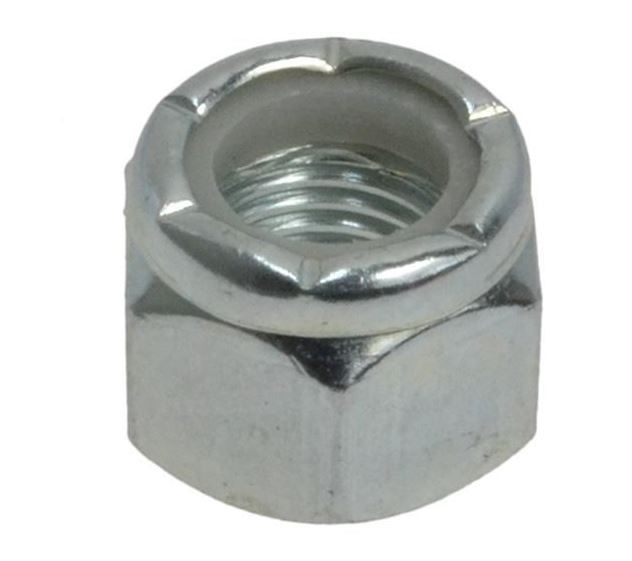

Nyloc Hex Nut - HT - ZP - 5/8UNC (Box=100)

IFI-100NE / GRADE 8 - 5/8UNC
Stock Code:
NNG8ZC062
$1.57 incl GST

Stock Locations

  • Ballarat:
    500 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Nyloc Hex Nut - 5/8UNC Zinc Plated (Box 100)

(Price per unit)

Hex Nyloc Insert nuts is hex shaped, internally threaded with a nylon insert. The nylon material prevents loosening from vibration and cross threads to stop the nut from backing off of the fastener. The insert deforms elastically over the threads of the screw, but threads are not cut into the nylon. The nylon insert locks the nut in two ways. First, it forces the bottom face of the screw threads against the top face of the nut threads, increasing the friction between the two. Second, the nylon applies a compressive force against the screw itself. They can also be used to assist sealing the bolt thread against seepage of oil, water, petrol, paraffin and other liquids.They come in a variety of materials

Finish
ZINC PLATED (RoHS Compliant)

Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & non-corrosive environments.

Product
NYLOC HEX NUT

Size
5/8

Specification
IFI-100NE / GRADE 8

Thread
5/8-11 UNC


Click here for hobson high tensile product guide

Click here for hobson finish comparison

Click here for hobson technical anti vibration paper

Click here for hobson breaking strength guide

Details

  • Thread Size:
    UNC_5/8
  • Left or Right Hand:
    Right Hand
  • Material:
    Steel - Zinc Plated - Grade 8
  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial - UNC
  • Type:
    Each
