Nyloc Hex Nut - ZP - 1-1/8UNF (Box=25)

IFI-100NE / GRADE 2 - 1-1/8UNF
Stock Code:
NNG2ZF112
$11.46 incl GST
Minimum Order Quantity: 25

Stock Locations

  • Ballarat:
    Special Order

Must be ordered in multiples of 25

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

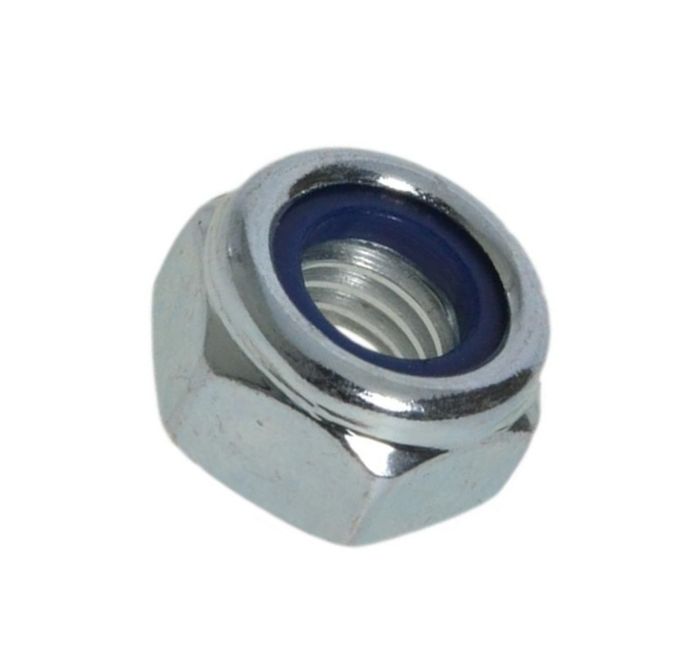

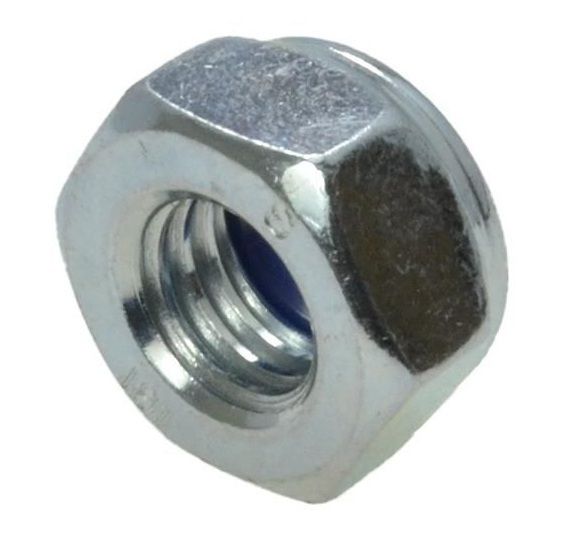

Nyloc Hex Nut - Zinc Plate - 1-1/8UNF (Box=25)

(Price per unit)

Nyloc Insert Nuts feature a nylon ring at the top of the nut that locks onto the bolt threads once fully tightened. This creates a friction-based locking action that helps prevent loosening due to vibration, removing the need for a separate lock washer.

  • Nylon insert grips the bolt threads when the nut is seated
  • Locking action is based on friction, not additional hardware
  • Helps resist loosening under vibration and movement
  • Designed for single-use applications

The nylon insert deforms during the first installation, which means its locking effectiveness is reduced if the nut is reused.

Nuts should be selected to match a compatible bolt grade and material system to ensure proper strength and performance.

Heat Tolerance.  For high temperature applications, ie above 120 °C , use an all metal locking nut, (e.g. Stover, Conelock, K-Lock) which does not have nylon and is rated to the same temperature as the steel itself.

Typical applications - Automotive, machinery & equipment, construction, marine & outdoor equipment, consumer products

Also known as: Nyloc Nuts, Nylon Insert Lock Nuts, Nyloc Insert Nuts, Self-Locking Nuts (Nylon), Polystop Nuts

Product
NYLOC HEX NUT

Finish
ZINC PLATED (RoHS Compliant)

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. External use is not recommended if corrosion is a concern. Choose from the Stainless steel range for external use.

Size
1-1/8

Specification / Reference
IFI-100NE / GRADE 2

Thread
1-1/8-12 UNF


Click here for hobson commercial product guide

Click here for hobson finish comparison

Click here for hobson technical anti vibration paper

Click here for hobson breaking strength guide

Click here for hobson nyloc hex nuts grade 2

Click here for spanner selection for hex bolts & nuts imperial

Details

  • Thread Size:
    UNF_1-1/8
  • Left or Right Hand:
    Right Hand
  • Material:
    Steel - Zinc Plated - Grade 2
  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial - UNF
  • Type:
    Each
