Cone Lock HCL Nut - HT ZP 1-1/4UNF x (Box=25)

ASME B18.16.6 / Grade C - 1-1/4UNF
Stock Code:
NCGCZF125
$15.42 incl GST
Minimum Order Quantity: 25

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    25 In Stock

Must be ordered in multiples of 25

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

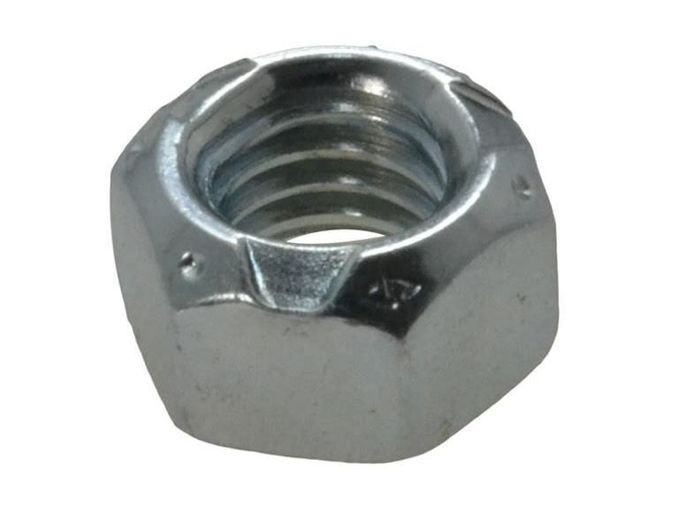

HCL Conelock Nut Zinc Plated GRC 1-1/4UNF

Hex Conelock nuts have a conical top and a flat bottom bearing surface with chamfered corners. The locking action, created by distortion of their top threads, is said to be capable of withstanding severe vibration and shock loads. Since they are top locking and only the bottom surface is flat, conelock nuts are considered one way lock nuts because they are installed one way—top up. Being all-metal, they are not subject to the temperature and chemical limitations of non-metallic (such as nylon) insert type lock nuts. Used in the automotive, agricultural equipment and metalworking industries, their cone shape allows for proper orientation during automated assembly making them popular for high volume applications

Using a Conelock: Conelocks are a locking nut, they will wind on freely until they hit the triangular cone shape top with the dots, then a tool is required to tighten nut

Also known as: Prevailing Torque Lock Nuts, Stover Nuts, Grade C Lock Nuts, Automation Lock Nuts, Autolock Nuts, Crownlock Nuts, Unitorque Nuts

Product
HCL CONE LOCK NUT

Finish
ZINC PLATE

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. Whilst some people use it externally it isnt recommended if corrosion is a concern. If you want a fastener that will withstand the outdoor elements choose from our Stainless steel range

Size
1-1/4

Specification
ASME B18.16.6 / Grade C

Thread
1-1/4-12 UNF


Click here for hobson high tensile product guide

Click here for cone lock nuts guide

Click here for hobson product finish comparison

Click here for hobson anti-vibration paper

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    UNF_1-1/4
  • Left or Right Hand:
    Right Hand
  • Material:
    Steel - Zinc Plated - Grade C
  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial - UNF
  • Type:
    Each
