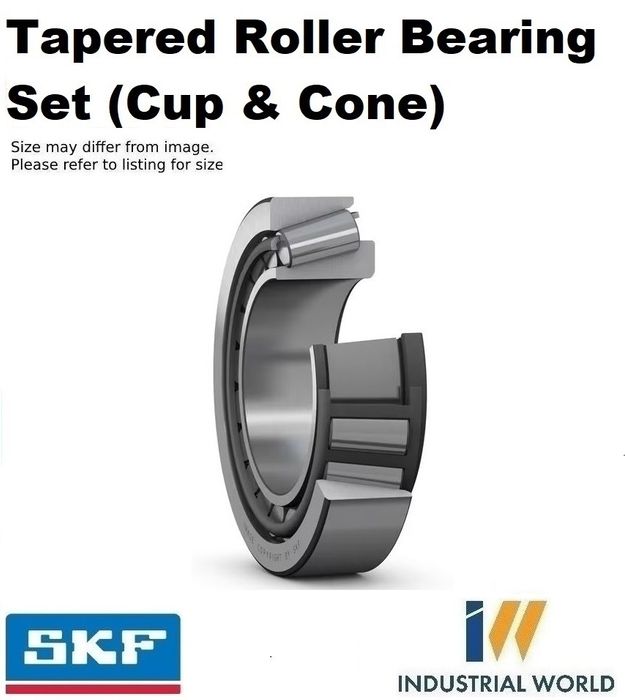

SKF - Taper Roller Bearing Set - Cup & Cone

HM218248 - HM218210 (89.97 x 146.98 x 40 mm)
Stock Code:
SET414_SKF
$86.47 incl GST

Stock Locations

  • Ballarat:
    76 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SET414

SKF - Taper Roller Bearing Set - Cup & Cone
HM218248 - HM218210 (89.97 x 146.98 x 40 mm)

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

Dimensions

Bore diameter89.975 mm
Outside diameter146.975 mm
Width, total40 mm
Width, inner ring40 mm
Width, outer ring32.5 mm
Contact angle12.5 °

Performance

Basic dynamic load rating280 kN
Basic static load rating355 kN
Reference speed3 400 r/min
Limiting speed4 300 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemInch
Indicative carbon footprint for new product9 kg CO2e

Logistics

Product net weight2.5 kg
eClass code23-05-09-10
UNSPSC code31171516

Enter dimensions into the SKF Product Table to find the right bearing for you.

Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    89.97 mm (2.5 Inch)
  • Material:
    Chrome Steel
  • Width:
    40 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Chain Series:
    HM218200
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    146.98 mm (5.79 In)
