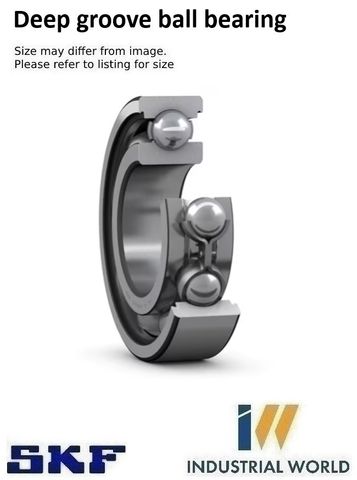

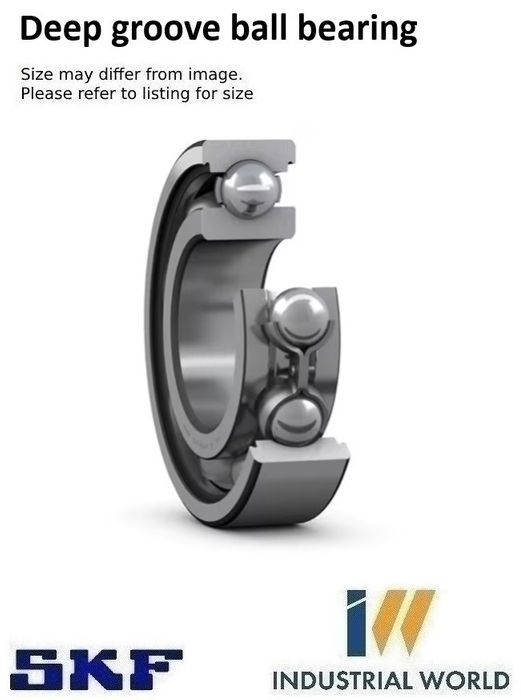

SKF - Deep Groove Ball Bearing

120 x 180 x 19 (16024/C3)
Stock Code:
16024-C3_SKF
$467.01 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

16024/C3
Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter120 mm
Outside diameter180 mm
Width19 mm

Performance

Basic dynamic load rating63.7 kN
Basic static load rating64 kN
Reference speed7 500 r/min
Limiting speed4 800 r/min
SKF performance classSKF Explorer

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product5.6 kg CO2e

Logistics

Product net weight1.56 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    120 mm
  • Material:
    Chrome steel
  • Width:
    19 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Open
  • Diameter Outside:
    180 mm
  • Style:
    Standard
