Conversion Chart

SKF - Deep Groove Ball Bearing Shiled on One Side

40 x 80 x 18 (208-ZNR)
Stock Code:
208-Z-NR_SKF
$84.21 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

208-ZNR

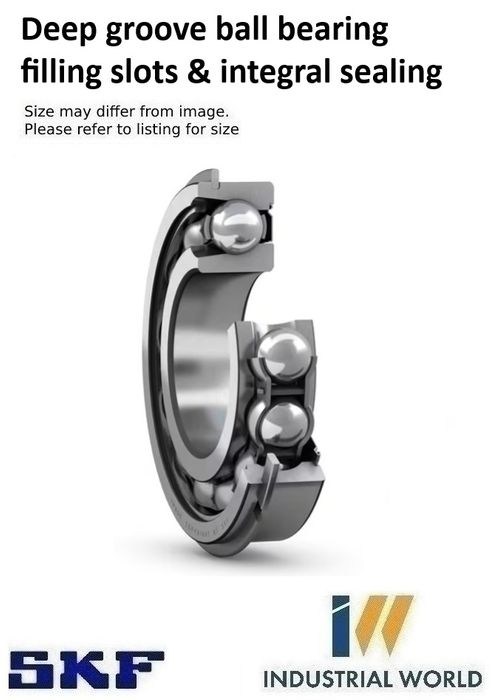

Deep groove ball bearing with filling slots and integral sealing

Single row deep groove ball bearings with filling slots, a snap ring, and shields on one or both sides, accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots. The snap ring, fitted in an annular groove in the outer ring, facilitates axial location of the bearings within their housings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Snap ring facilitates axial location within housing
  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Accommodate higher radial loads than corresponding bearings without filling slots, with limited axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter40 mm
Outside diameter80 mm
Width18 mm

Performance

Basic dynamic load rating33.6 kN
Basic static load rating27 kN
Reference speed15 000 r/min
Limiting speed9 500 r/min

Properties

Filling slotsWith
Number of rows1
Locating feature, bearing outer ringSnap ring (fitted)
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingShield on one side
Sealing typeNon-contact
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product1.4 kg CO2e

Logistics

Product net weight0.398 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Chrome steel
  • Width:
    18 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Open
  • Diameter Outside:
    80 mm
  • Style:
    Snap ring groove with snap ring
