SKF - Deep Groove Ball Bearing

30 x 72 x 19 (6306-2LS2/C5/246560 AA)
Stock Code:
6306-2LS2-C5_SKF
$60.81 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6306-2LS2/C5/246560 AA

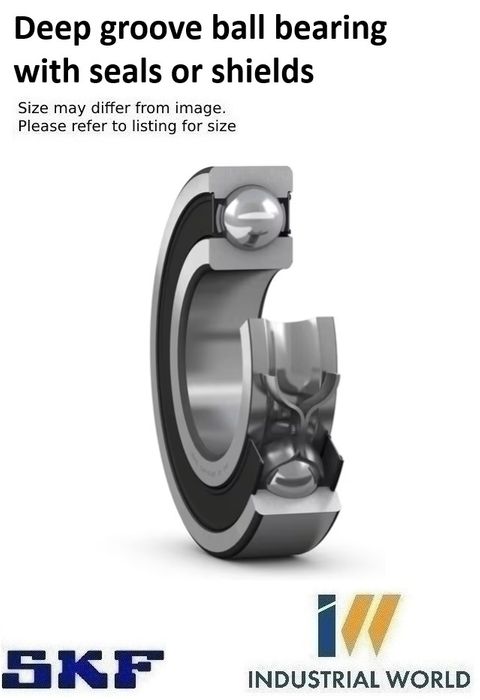

Deep groove ball bearing with seals or shields

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter30 mm
Outside diameter72 mm
Width19 mm

Performance

Basic dynamic load rating29.6 kN
Basic static load rating16 kN
Reference speed20 000 r/min
Limiting speed13 000 r/min
SKF performance classSKF Explorer

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceC5
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout
Indicative carbon footprint for new product1.3 kg CO2e

Logistics

Product net weight0.352 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Chrome steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C5 Clearance
  • Style:
    Standard
