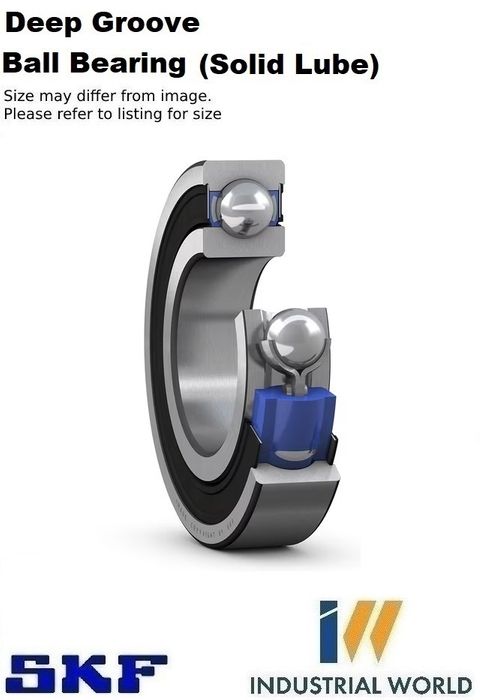

SKF - Solid Lube Deep Groove

45 x 58 x 7

Stock Code:

61809-2RS/W64_SKF

$430.27 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

61809-2RS1/W64

Deep groove ball bearing with solid oil

SKF bearings with Solid Oil are designed for use in applications where high levels of moisture and incidental contact with water and other contaminants are real issues. Bearings with Solid Oil are lubricated for the life of the bearing and cannot be relubricated.

Solid Oil:

Is an oil saturated, polymer material moulded into the bearing, forming very narrow gaps between the rolling elements, raceways and cage(s), enabling the bearing to rotate freely
Having a porous structure, with millions of micro-pores that retain the lubricating oil by surface tension
Virtually fills all of the free space in the bearing
Releases oil into the narrow gaps, during operation, providing effective minimum quantity lubrication

DIMENSIONS
Bore diameter	45mm
Outside diameter	58mm
Width	7mm

PERFORMANCE
Basic dynamic load rating	6.63kN
Basic static load rating	6.1kN
Limiting speed	4600r/min
Note	Limiting speed at 20 °C (70 °F) ambient temperaturer/min
Maximum operating temperature	85°C
SKF performance class	SKF Explorer

PROPERTIES
Filling slots	Without
Number of rows	1
Locating feature, bearing outer ring	Without
Bore type	Cylindrical
Cage	Sheet metal
Matched arrangement	No
Radial internal clearance	CN
Material, bearing	Bearing steel
Coating	Without
Sealing	Seal on both sides
Sealing type	Contact
Lubricant	Solid Oil
Relubrication feature	Without
Indicative carbon footprint for new product	0.13kg CO₂e

LOGISTICS
EAN code	07316580005032
Pack code	12
Products per pack	1
Collecting pack quantity	5
Products per pallet	700
Pack gross weight	0.047kg
Pack length	69mm
Pack height	69mm
Pack width	17mm
Pack volume	0.08dm³
Product net weight	0.037kg
eClass code	23-05-08-01
UNSPSC code	31171504
