SKF - Deep Groove Ball Bearing Brass Cage

340 x 420 x 38 (61868 MA)
Stock Code:
61868-MA_SKF
$5,112.33 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

61868 MA

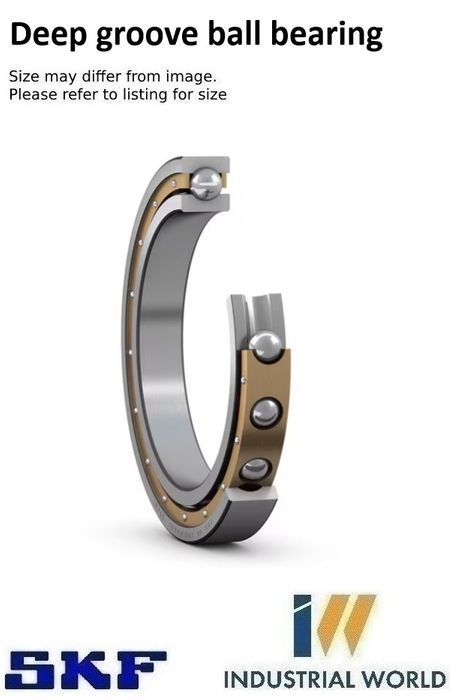

Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter340 mm
Outside diameter420 mm
Width38 mm

Performance

Basic dynamic load rating178 kN
Basic static load rating275 kN
Reference speed2 800 r/min
Limiting speed2 400 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageMachined brass
Matched arrangementNo
Radial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Candidate for remanufacturingYes
Indicative carbon footprint for new product40.8 kg CO2e
Indicative carbon footprint for remanufactured product14.3 kg CO2e

Logistics

Product net weight11.3 kg
eClass code23-05-08-01
UNSPSC code31171504



Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    340 mm
  • Material:
    Chrome steel
  • Width:
    38 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Open
  • Diameter Outside:
    420 mm
  • Style:
    Machined brass cage
