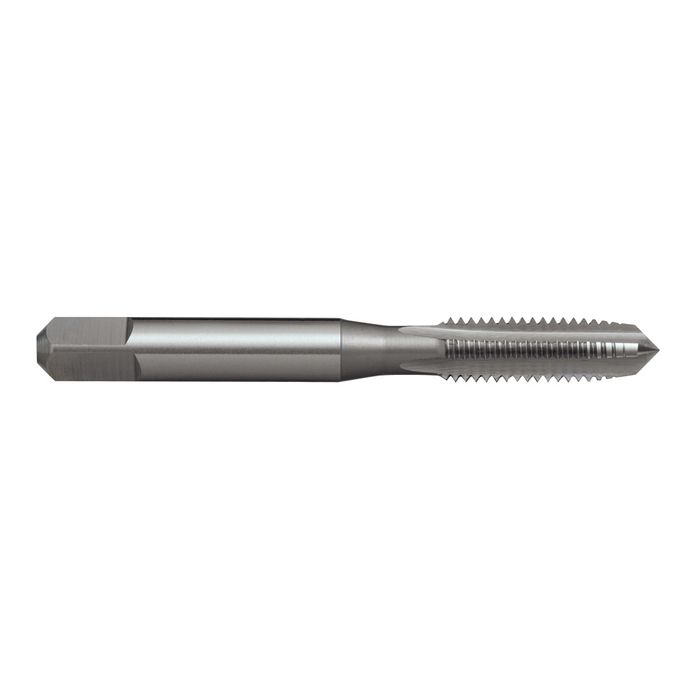

Sutton - Straight Flute Tap - Intermediate

Metric Fine MF12 x 1.25 HSS
Stock Code:
SUT-T4021206
$75.42 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T4021206 MF12 x 1.25 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - MF - Intermediate

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Intermediate

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

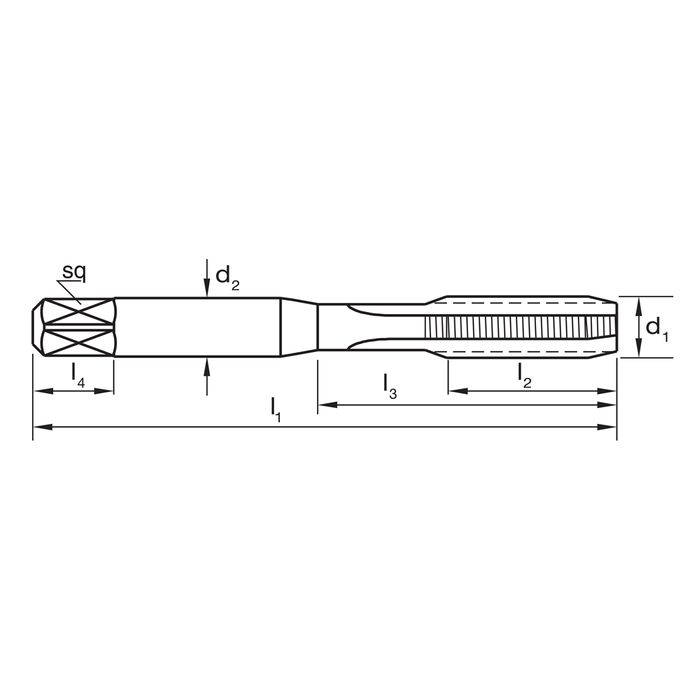

Specifications

  • BrandSutton Tools
  • Model NumberT4021206
  • Barcode Number9311963010861
  • Shank (mm)9
  • L1 (mm)89
  • Pitch (mm)1.25
  • Sq7.1
  • Diameter (metric)MF12
  • L4 (mm)10
  • z4
  • Drill Size (mm)10.8
  • L2 (mm)29
  • Group CodeT402
  • Thread FormISO Metric Fine (MF)
  • System of MeasurementISO529
  • MaterialHigh Speed Steel (HSS)
  • FinishBright
  • LeadIntermediate
  • ApplicationN (for normal general purpose type materials)
  • Tap TypeStraight Flute
  • Shank FormReinforced Shank (with square drive)
  • Nut ToleranceISO 2 / 6H
  • Max Cut Depth1xD

Click here for catalogue information
