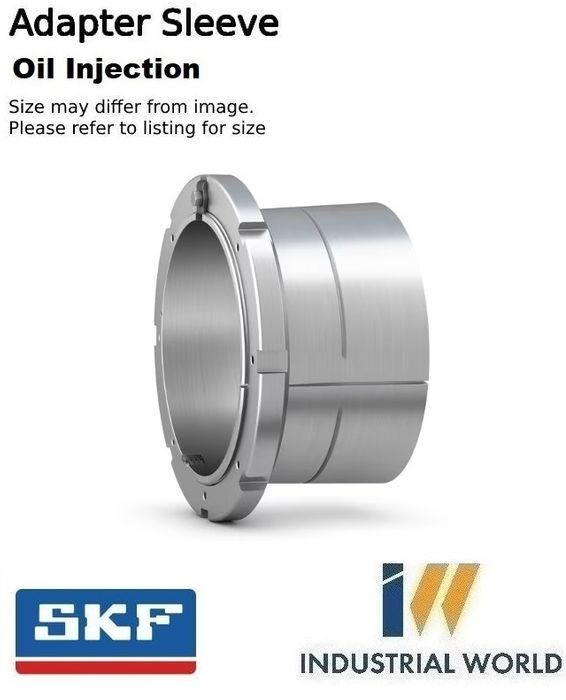

SKF - Adapter Sleeve 220 mm Bore -OIL Injection

Nut = HM3048 Tr240x4 Washer = MB48
Stock Code:
OH3048H_SKF
$1,386.78 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

OH 3048 H
Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Dimensions

Bore diameter220 mm
Width133 mm
Thread designationTr240x4

Properties

Taper1:12
Holes for oil injectionWith

Logistics

Product net weight11.8 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for catalogue information

View product table

Product guide attached


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    220 mm
  • Thread Size:
    M240x4
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    OH30
  • Style:
    Oil Injection
