Click to Enlarge

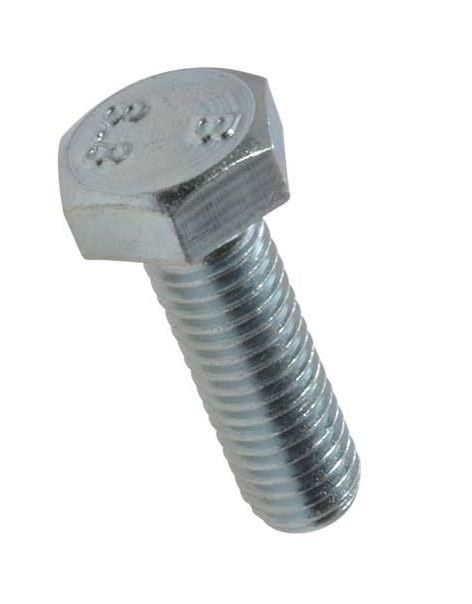

Hex Set Screw - HT - ZP - M20x85 (Box=20)

AS1110.2 / CLASS 8.8 - M20

Stock Code:

BS88ZCM200085

$5.24 incl GST

Stock Locations

Ballarat:

20 In Stock

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

Hex Set Screw - M20x85 mm Zinc Plated (Box=20)

(Price per unit)

Hex set screws are fully threaded fasteners, with the thread extending up to the underside of the hexagonal head. If you require an unthreaded section, known as a shank, you should select a hex bolt instead.

Suitable for metal-to-metal connections, equipment assembly and other applications requiring consistent and dependable clamping force.

Screw: Similar to a bolt but has a much longer thread almost to the head. It can be tightened with a nut or a threaded through hole or a blind hole. In some instances, a screw could cut or form its own thread (eg. timber screws, thread forming screws).

Material Compatibility To ensure optimum strength, corrosion resistance, and long-term performance, hex set screws should be selected from a material compatible with the associated washers and nuts. For example, use stainless steel hex set screws with stainless steel nuts and washers, and galvanised hex bolts with galvanised nuts and washers.

Features

Higher tensile capacity than mild steel set screw
Able to be threaded into taped holes
Improved fatigue resistance when compared to bolts

Product

HEX SET SCREW

Finish

ZINC PLATED (RoHS Compliant)

Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & noncorrosive environments.

Size

M20

Length / Dimension

85 mm

Thread

M20-2.50 x Fully Threaded Thread length on older stock may vary

Specification

AS1110.2 / CLASS 8.8

QTY - Sold Individually
