Flat Rnd Washer Hardened HDG M12x24x2.5 (Box=200)

AS1237 / 35-41 HRC - M12
Stock Code:
WRHTGM12
$0.35 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

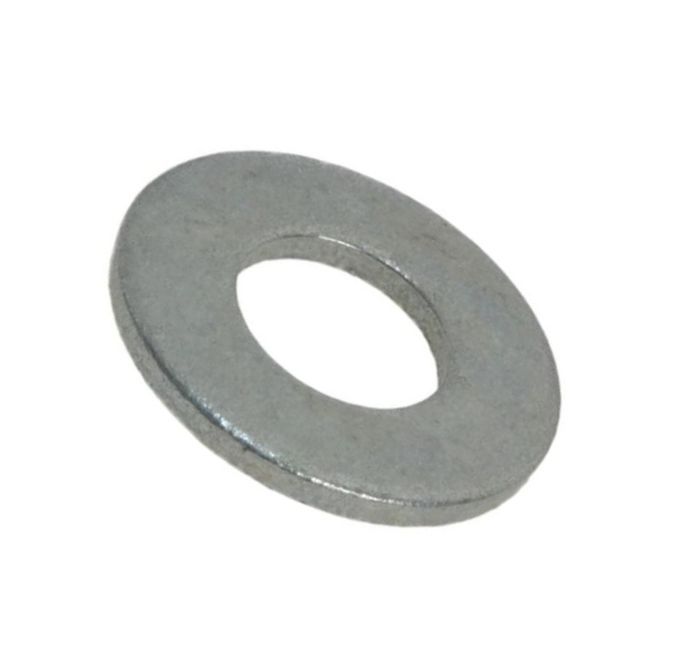

Flat Round Washer Hardened Hot Dipped Galvanised M12x24x2.5 (Box=200)

(Price per unit)

Heavy Flat Washers are used to increase the bearing surface of a nut or fastener's head thus spreading the clamping force over a larger area. They can be useful when working with soft materials and oversized or irregular shaped holes. The washer also ensures a smooth base for the nut to press against.

To ensure optimum strength, corrosion resistance, and long-term performance, flat washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and galvanised washers with galvanised fasteners.

Finish
HOT DIP GALVANISED

HDG products are used where a high level of corrosion resistance is required. HDG products are recommended for long term outdoor applications

Product
FLAT ROUND HARDENED WASHER

Size
M12

Length / Dimension
x24.0x2.5

Specification
AS1237 / 35-41 HRC


Material:
Typically manufactured from hardened carbon steel or alloy steel that has been heat-treated to achieve the specified hardness range.

Hardness Requirement:
35–41 HRC (Rockwell C). This hardness range provides increased resistance to deformation, embedding, and wear, making the washer suitable for applications involving high clamping forces and high-strength bolted connections.

Note:
The applicable washer standard and mechanical requirements should be confirmed against the intended application and fastener system.



Hobson washers product guide

Types of washers

Washer selection guide

Washer gauge conversion chart

Product finish comparison

Hobson flat round hardened washer information

Hobson grey galvanising

Details

  • Bore Size:
    13.7 mm
  • Material:
    Galvanised Mild Steel
  • Width:
    2.5 mm
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
  • Diameter Outside:
    24 mm
