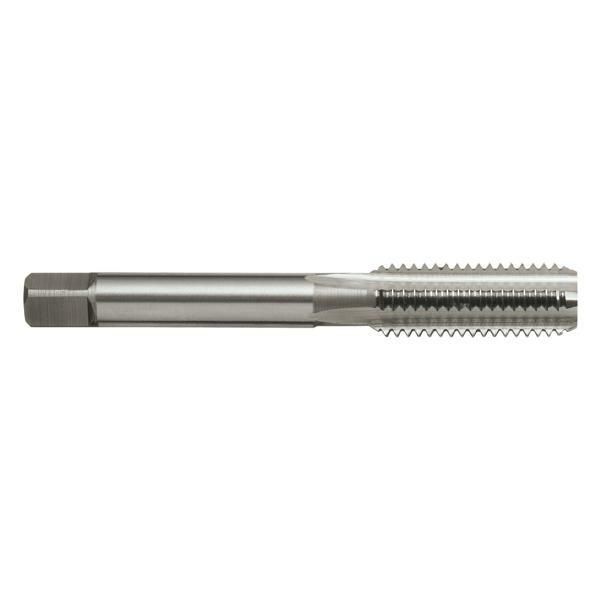

Sutton - M16 x 2 Straight Flute Tap

Bottoming - Oversize - HSS
Stock Code:
SUT-T3921600
$157.44 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T3921600 M16 x 2 Straight Flute Tap - Bottoming - Oversize - HSS

Suttons Straight Flute Taps - Oversize - M - Bottoming

Features

  • Oversize allowance to suit components for galvanize plating
  • General purpose use, materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx 1 x d1
  • Taper and inter leads available on request

Specifications

  • Designation:
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

  • BrandSutton Tools
  • Model Number T3921600
  • Barcode Number 9311963347813
  • Shank (mm) 12.5
  • L1 (mm) 112
  • Pitch (mm)2
  • Sq10
  • Diameter (metric) M16
  • L4 (mm) 13
  • z4
  • Drill Size (mm) 14.4
  • L2 (mm )37
  • Group Code T392
  • System of Measurement ISO529
  • Thread FormISO Metric Coarse (M)
  • MaterialHigh Speed Steel (HSS)
  • Finish Bright
  • Lead Bottoming
  • Nut Tolerance ISO 2 / 6H
  • Max Cut Depth1xD
  • Tap Type Straight Flute
  • Shank Form Reduced Shank (with square drive)
