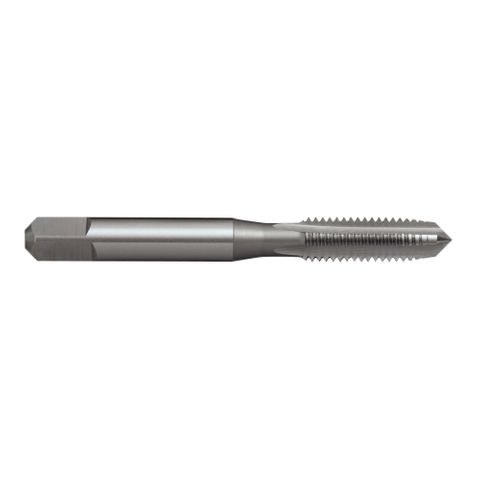

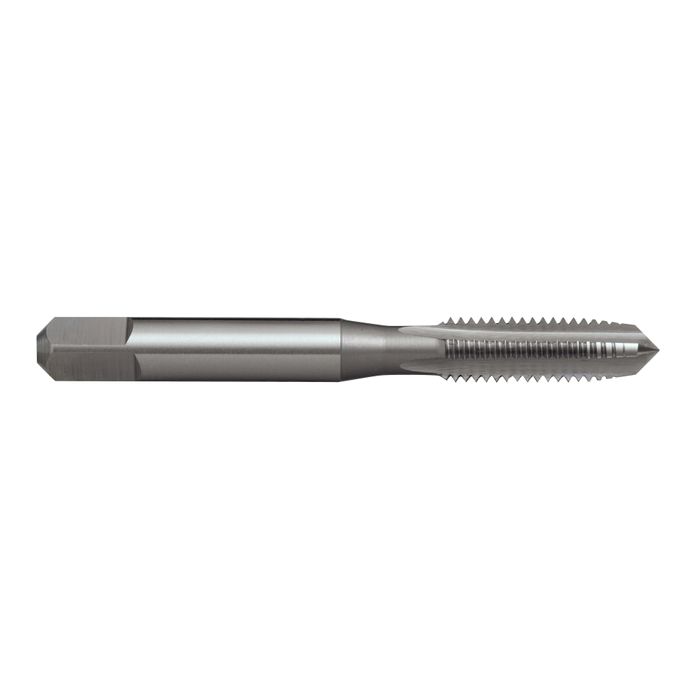

Sutton - Straight Flute Tap - Intermediate

Metric Fine MF18 x 1.5 HSS
Stock Code:
SUT-T4021807
$144.45 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T4021807 Metric MF18 x 1.5 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - MF - Intermediate

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifcations

  • Brand Sutton Tools
  • Model Number T4021807
  • Barcode Number 9311963016832
  • Shank (mm) 14
  • L1 (mm) 112
  • Pitch (mm) 1.5
  • L2 (mm) 37
  • z4
  • Diameter (metric) MF18
  • Drill Size (mm) 16.5
  • L4 (mm) 14
  • Sq11.2
  • Group Code T402
  • System of Measurement ISO529
  • Thread Form ISO Metric Fine (MF)
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Lead Intermediate
  • Application N (for normal general purpose type materials)
  • Shank Form Reinforced Shank (with square drive)
  • Max Cut Depth 1xD
  • Tap Type Straight Flute
  • Nut Tolerance ISO 2 / 6H
