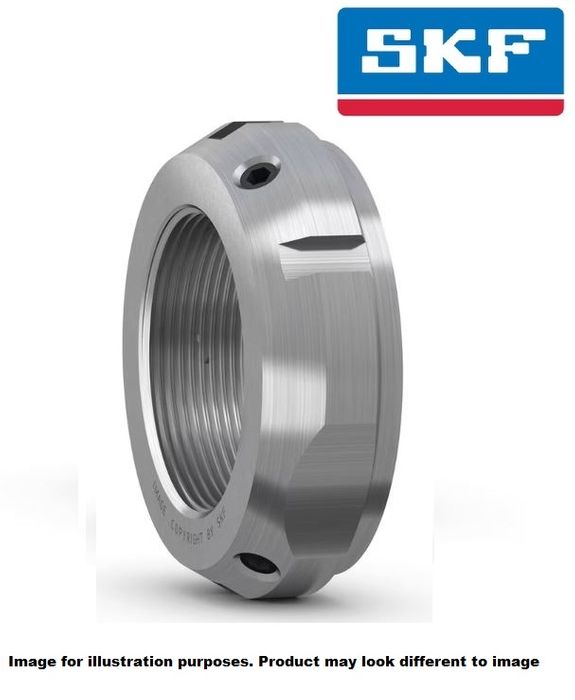

SKF - KMT Precision Lock Nut with Locking Pins

M 130 x 2
Stock Code:
KMT26_SKF
$443.08 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMT 26

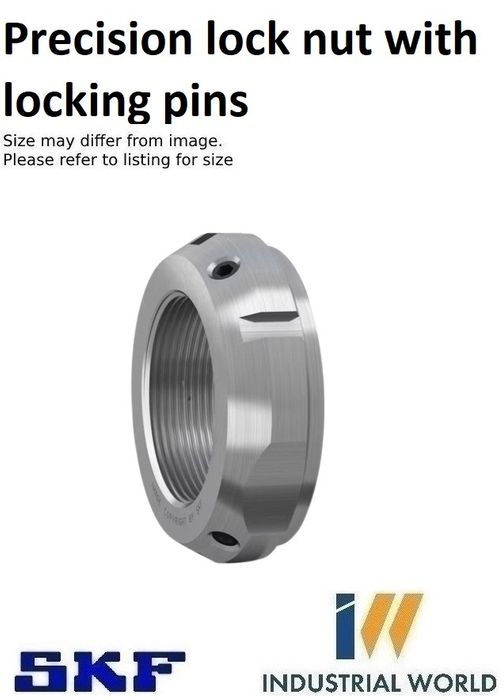

Precision lock nut with locking pins

KMT precision lock nuts are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm

  • No keyway required
  • Withstands high axial loads
  • Reliable, effective locking mechanism
  • Designed for frequent and simple installation and removal
  • Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40) and Tr 220x4 to Tr 420x5 (sizes 44 to 84)

Dimensions

Thread designationM 130x2
Bore diameter130 mm
Outside diameter165 mm
Width32 mm

Properties

Locking deviceIncorporated in the lock nut
Nut for hydraulic mountingNo
Associated mounting toolTMFN 23-30

Logistics

Product net weight1.7 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M130x2
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Locking Pin
