Conversion Chart

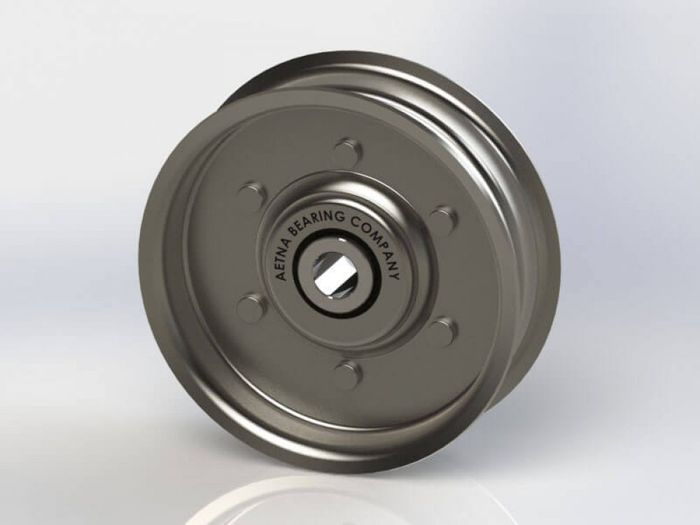

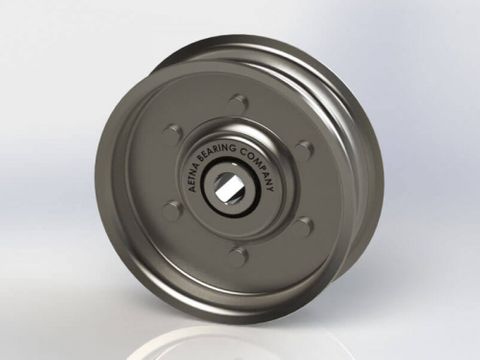

Aetna - Idler Pulley Flat Flanged

3-7/16 Inch OD x 1/2 Inch ID x 1 Wide
Stock Code:
AG2354AS
$89.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

AG2354AS

Idler Pulley Flat Flanged

Provide long life under demanding conditions. They are installed with standard 1/2″ or 5/8″ bolts. Applications include agricultural, power transmission equipment, and conveyor systems. Aetna belt idlers are generally used as tensioners or direction changers. Permanently lubricated and sealed against grime and dirt. Fit into existing designs with little or no engineering changes, or are readily adapted to new designs.

ADVANTAGES

  • Over-size, factory packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication
  • Case hardened to resist belt abrasion
  • Available for most common belt sizes
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running
  • Aetna’s self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment
  • Full ball complement for high durability

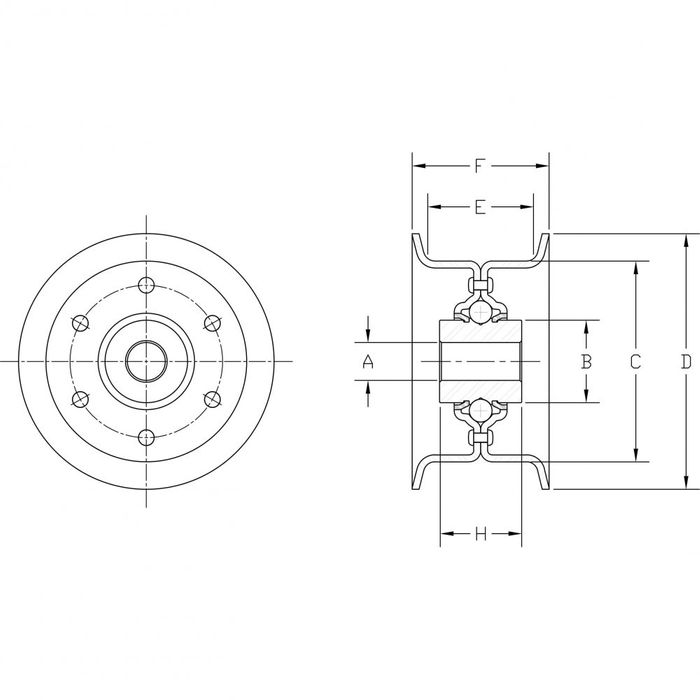

Dimensions (Inches) - Refer to Diagram

A .516/.522

B 15/16

C 2-3/4

D 3-7/16

E 1

F 1-13/32

G .144

H 1.125

Weight LBS - .68

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Pressed Steel
  • Brand:
    Aetna
  • Type:
    Flat
  • Size:
    3 7/16
