Conversion Chart

SKF - POSITRAC LABYRINTH SEAL

125.41 x 143.51 x 25.4
Stock Code:
LOR122_SKF
$98.12 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

LOR 122

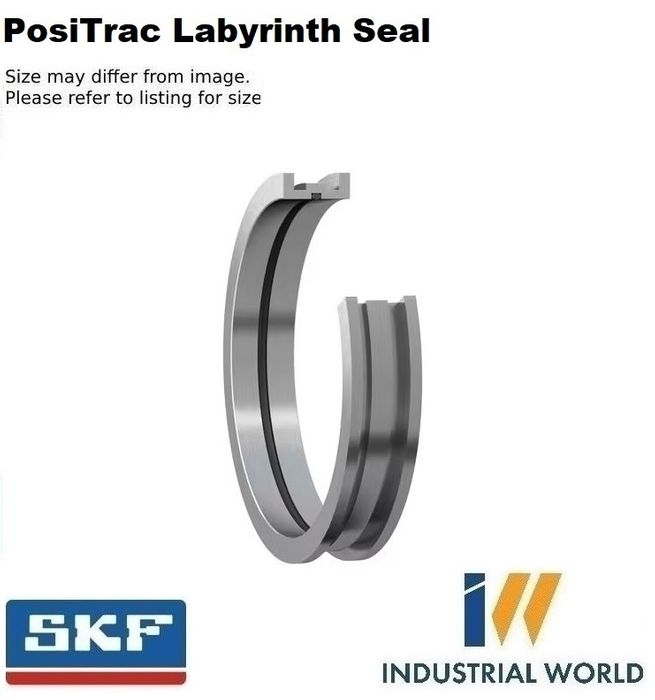

PosiTrac labyrinth seal

These labyrinth seals are the standard sealing solution for larger SAF and SAW housings (for housing size 13 and above). The rings form a multi-stage labyrinth seal with the housing seal grooves. They have an O-ring in their bore to make the labyrinth ring rotate with the shaft. The sealing effect can be enhanced by filling the cavity between the housing and seal ring with grease.

  • Good protection from contamination
  • Virtually no friction
  • Easy upgrade to PosiTrac Plus
  • Cost-effective

Dimensions

Outside diameter143.51 mm
Shaft diameter125.413 mm
Width25.4 mm

Properties

Accessory typeHousing seal
Sealing typeLabyrinth
MaterialAluminium

Logistics

Product net weight0.136 kg
eClass code23-05-17-90
UNSPSC code31171519

Click here for product information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
