SKF - IMPERIAL LOCK NUT

Stock Code:
N060_SKF
$1,369.06 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

N 060

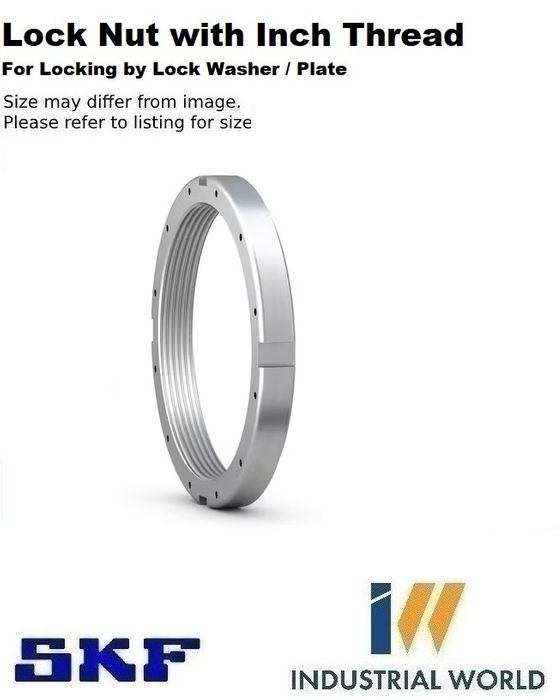

Lock nut with inch thread, for locking by lock washer or locking plate

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adapter sleeve

Dimensions

Thread designation11.785-6
Bore diameter299.339 mm
Outside diameter360.502 mm
Width39.954 mm

Properties

Locking deviceLocking plate
Nut for hydraulic mountingNo
Associated mounting toolTMFN 52-64

Logistics

Product net weight9.16 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for catalogue information



View product table



Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    INCH 11.785-6
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Style:
    Standard
