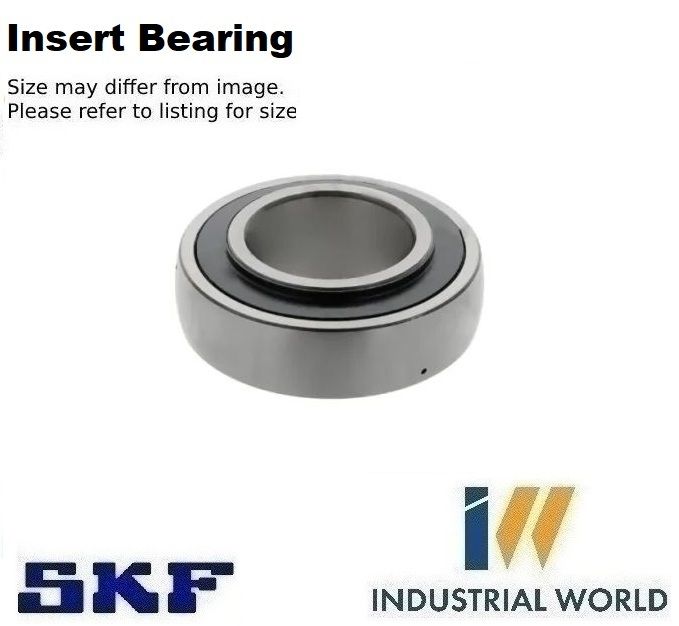

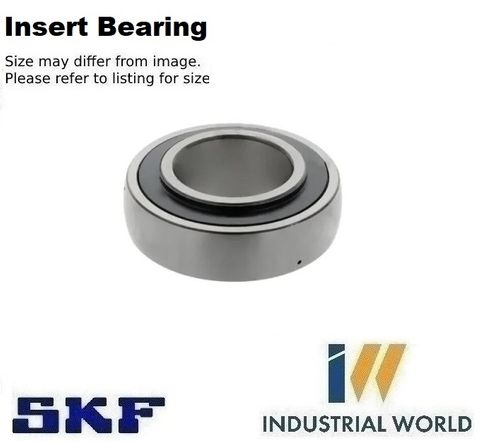

SKF - Insert Bearing

50 X 90 X 37 / 22
Stock Code:
BBYB631139_SKF
$111.08 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

BBYB 631139

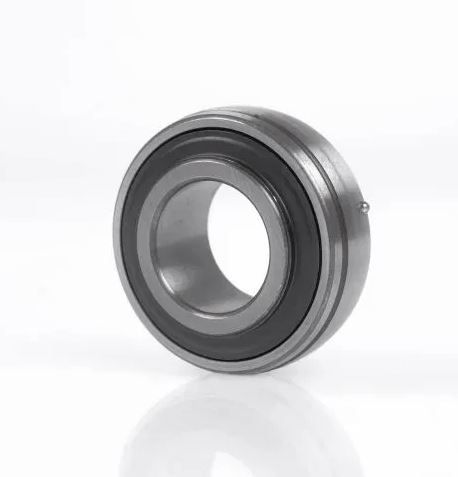

Insert bearing

Insert bearings are based on sealed deep groove ball bearings. They have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft. SKF supplies insert bearings in many designs and variants and with several sealing arrangements.

  • Quick and easy to mount onto the shaft
  • Accommodate static initial misalignment
  • Long service life
  • Reduced noise and vibration levels

Dimensions

Bore diameter50 mm
Outside diameter90 mm
Width, total37 mm
Width, inner ring37 mm
Width, outer ring22 mm

Performance

Basic dynamic load rating35.1 kN
Basic static load rating23.2 kN
Limiting speed2 200 r/min

Properties

Retaining feature, inner ringInterference fit
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionOn both sides
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingWithout
SealingSeal and flinger on both sides
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight0.627 kg
eClass code23-05-08-02
UNSPSC code31171536

Click Here for Product Information
