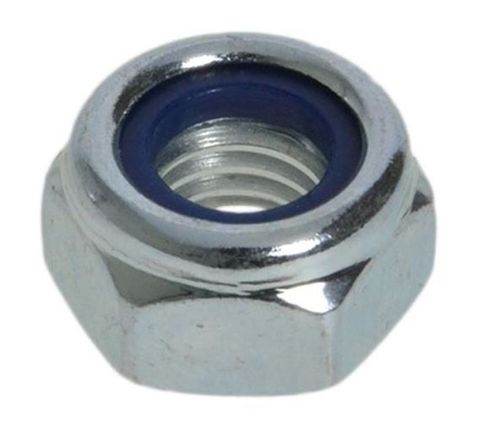

Nyloc Hex Nut - M27 Zinc Plated (Box=25)

DIN985 / CLASS 8 - M27-3.00 Thread
Stock Code:
NN08ZCM27
$13.12 incl GST
Minimum Order Quantity: 25

Stock Locations

  • Ballarat:
    Special Order

Must be ordered in multiples of 25

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

M27 Nyloc Hex Nut Class 8 Zinc Plated (Box = 25)

(Price per unit)

Nyloc Insert Nuts feature a nylon ring at the top of the nut that locks onto the bolt threads once fully tightened. This creates a friction-based locking action that helps prevent loosening due to vibration, removing the need for a separate lock washer.

  • Nylon insert grips the bolt threads when the nut is seated
  • Locking action is based on friction, not additional hardware
  • Helps resist loosening under vibration and movement
  • Designed for single-use applications

The nylon insert deforms during the first installation, which means its locking effectiveness is reduced if the nut is reused.

Nuts should be selected to match a compatible bolt grade and material system to ensure proper strength and performance.

Heat Tolerance.  For high temperature applications, ie above 120 °C , use an all metal locking nut, (e.g. Stover, Conelock, K-Lock) which does not have nylon and is rated to the same temperature as the steel itself.

Typical applications - Automotive, machinery & equipment, construction, marine & outdoor equipment, consumer products

Also known as: Nyloc Nuts, Nylon Insert Lock Nuts, Nyloc Insert Nuts, Self-Locking Nuts (Nylon), Polystop Nuts

Product

NYLOC HEX NUT

Finish
ZINC PLATED (RoHS Compliant)

Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & non-corrosive environments.

Size
M27

Specification / Reference
DIN985 / CLASS 8

Thread
M27-3.00


Click here for hobson nyloc tightening torque guide

Click here for hobson nyloc proof load guide

Click here for hobson high tensile product guide

Click here for hobson finish comparison

Click here for hobson technical anti vibration paper

Click here for spanner selection for hex bolts & nuts metric

Details

  • Thread Size:
    M27-3.00
  • Left or Right Hand:
    Right Hand
  • Material:
    Steel - Zinc Plated - Grade 8
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric - Standard
  • Type:
    Each
