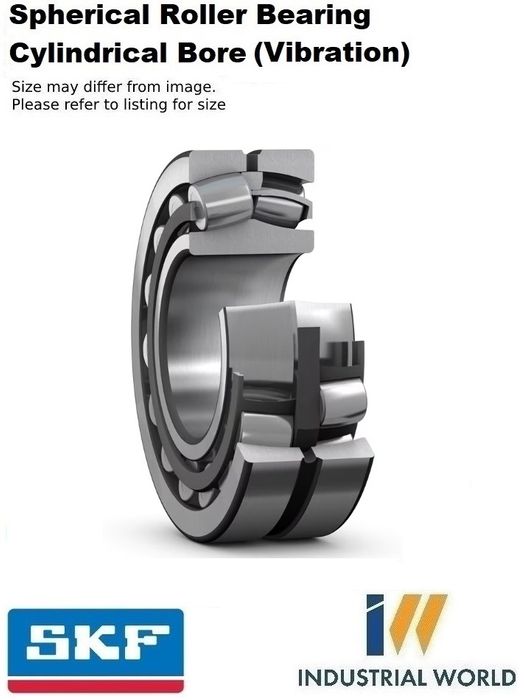

SKF - Vibration Spherical Roll Brg Cylindial Bore

140 x 300 x 102 C4 Clearance Steel Cage
Stock Code:
22328CC-JA-W33-VA406_SKF
$2,209.32 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

22328 CCJA/W33VA406
Spherical roller bearing for vibratory applications, with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Accommodate very high vibration levels
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter140 mm
Outside diameter300 mm
Width102 mm

Performance

Basic dynamic load rating1 357 kN
Basic static load rating1 560 kN
Reference speed1 700 r/min
Limiting speed2 200 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSurface-hardened sheet metal
Radial internal clearanceC4
Tolerance class for dimensionsNormal, bore to P5 and outside diameter P6
Tolerance class for run-outNormal
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight34.8 kg
eClass code23-05-09-11
UNSPSC code31171510



Click here for catalogue information

View product table

Product guide attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    140 mm
  • Material:
    Chrome Steel
  • Width:
    102 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    22328
  • Diameter Outside:
    300 mm
  • Style:
    Vibrating Screens
