Structural Nut - M10 - Z/P (Box= 100)

HEC/ M10-1.50
Stock Code:
NSMSZSSCM10
POA
Minimum Order Quantity: 100

Stock Locations

  • Ballarat:
    Special Order

Must be ordered in multiples of 100

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

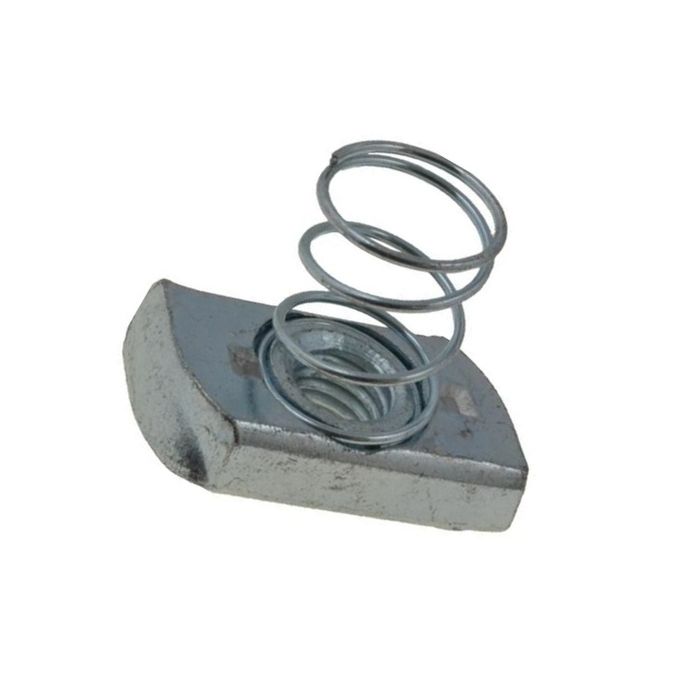

Zinc Plated STRUCTURAL NUT SHORT SPRING: M10 (Box = 100)

(Price per unit)

  • Spring strut / channel nuts provide a secure anchor point in:
    • Cable support systems
    • Tray systems
    • Pipe support systems
    • Other applications requiring a rectangular nut
  • Installation steps:
    • Insert the nut into the channel (strut) trough
    • Twist it into position
    • Ensure grooves align with the internal edges of the strut
  • How it works:
    • Thread and tighten a screw into the nut
    • Teeth in the grooves bite into the channel edges
    • This creates a firm, positive lock
  • Result:
    • Nut is securely fixed in place
    • Prevents slipping or movement
Product
STRUT CHANNEL NUT SHORT SPRING

Finish
ZINC PLATED (ROHS COMPLIANT)

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. External use is not recommended if corrosion is a concern. Choose from the Stainless steel range for external use.

Size
M10

Specification
HEC

Thread
M10-1.50

Dimensions

A19.0mm
B34.5mm
C9.2mm
L19.0mm
d218.0mm


Click here for hobson commercial product guide

Click here for hobson product finish comparison

Click here for Hobson strut channel nut short spring

Click here for Hobson prevent zinc whiskers

Details

  • Thread Size:
    M10-1.50
  • Left or Right Hand:
    Right Hand
  • Material:
    Steel - Zinc Plated
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric - Standard
  • Type:
    Each
  • Style:
    Rivet
