Conversion Chart

SOCKET HEAD SHOULDER SCREW - 1/2X1-1/2X3/8UNC

Plain ANSI B18.3/Alloy 3/8-16 UNC x 1/2
Stock Code:
SOSOPC0500150
$5.76 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

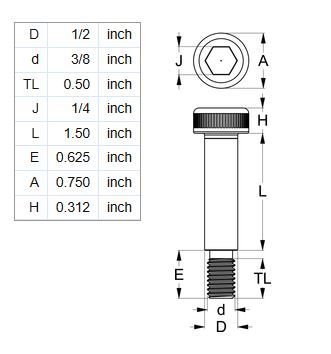

SOCKET HEAD SHOULDER SCREW - 1/2X1-1/2X3/8UNC

Socket Shoulder Screws are also known as stripper bolts, are essentially a socket cap screw that is only partially threaded with a shoulder. Shoulder bolts are measured by their diameter of shoulder x length of shoulder x thread diameter. These bolts are often used on machinery to provide a smooth surface for bearings to ride on

Also known as: Shoulder Screws, Stripper Bolts, Socket Head Shoulder Screws, Socket Head Stripper Bolt

Product
SOCKET HEAD SHOULDER SCREW

Finish
PLAIN

Black or plain finish is unfinished (bare steel) has no actual protective coating. You will not have any corrosion resistance and the product will rust over time. The term “black” is an old industry term for plain finish. Depending on the material grade and heat treatment process the colour can vary from a shiny oily finish to a dull black

Size
3/8

Specification
ANSI B18.3 / ALLOY

Length / Dimension
1/2x1-1/2

Thread
3/8-16 UNC x 1/2 Thread length on older stock may vary


Click here for Hobson SOKO product guide

Click here for Hobson SOKO tightening torque

Click here for product finish comparison


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    UNC 1/2-13
  • Left or Right Hand:
    Right Hand
  • Material:
    Alloy ANSI B18.3
  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial - UNC
  • Size:
    Each
  • Length:
    Inch 1.50
