SKF - Angular Contact Ball Bearing Polymer Cage

25 x 62 x 17 (7305 BE-2RZP)
Stock Code:
7305BEP-2RZ_SKF
$68.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

7305 BE-2RZP

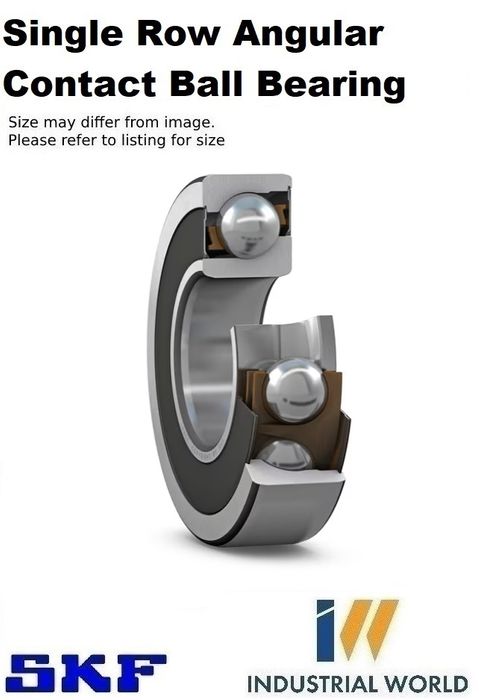

Single row angular contact ball bearing with 40° contact angle and non-contact seals on both sides

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • 40° contact angle
  • Integral sealing prolongs bearing service life
  • Glass-fibre reinforced PA66 cage
  • Accommodate relatively high radial loads and large unilateral axial loads

Dimensions

Bore diameter25 mm
Outside diameter62 mm
Width17 mm
Contact angle40 °

Performance

Basic dynamic load rating24.2 kN
Basic static load rating14 kN
Reference speed14 000 r/min
Limiting speed11 000 r/min

Properties

Contact typeNormal contact (two-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageNon-metallic
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceNot applicable
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeNon-contact
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight0.231 kg
eClass code23-05-08-03
UNSPSC code31171531



Click here for catalogue information

View product table


View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

Details

  • Bore Size:
    25 mm
  • Width:
    17 mm
  • Brand:
    SKF
  • Metric/Imperial:
    METRIC
  • Type:
    Polymer Cage
  • Size:
    7305
  • Diameter Outside:
    62 mm
  • Style:
    Sealed
