Serrated Flanged Hex Bolt HT ZP - M8x25 (Box=100)

DIN 6921 / CLASS 8.8 - M8
Stock Code:
BF88ZCM080025
$0.72 incl GST

Stock Locations

  • Ballarat:
    500 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

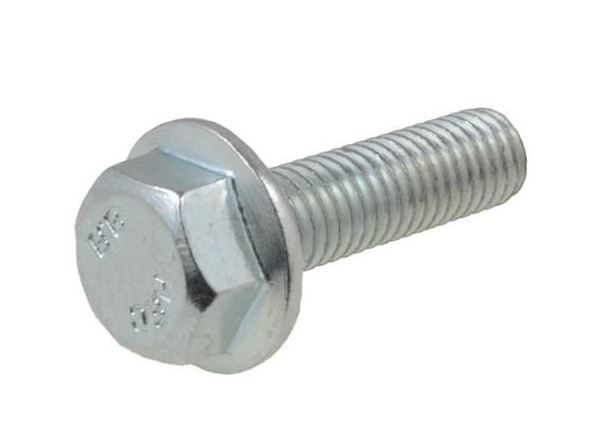

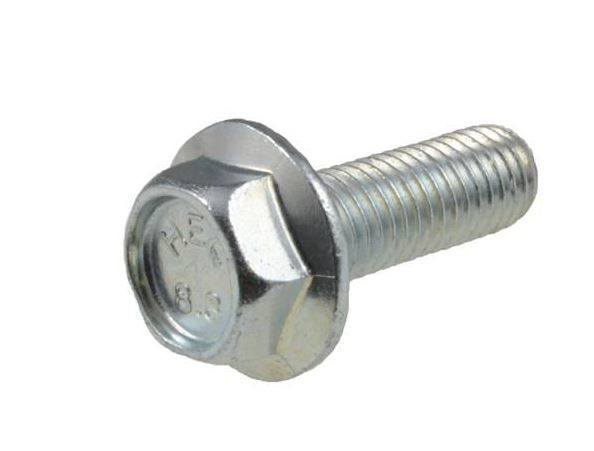

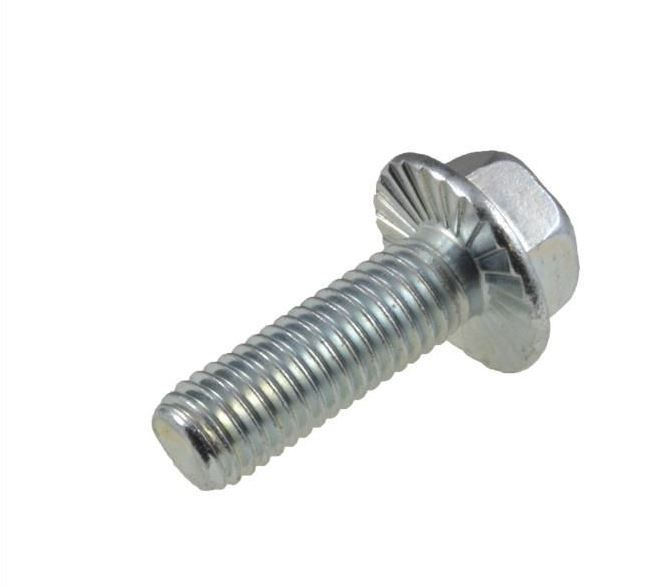

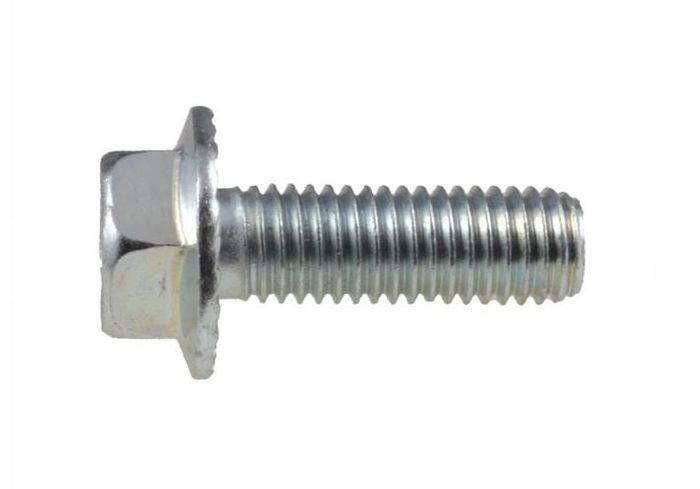

Serrated Flanged Hex Bolt - M8 x 25 Z/P (Box100)

Hex Flange Serrated Bolts have a hexagon head with a built-in washer & under head teeth like serrations that bite into the surface to help prevent loosening. The built-in washer distributes the clamping load over a greater surfce area. The wide flange head is designed to provide the same securing power as a washer. They can be used to fasten objects together by inserting the bolt from the one end & securing it with either a nut on the other end or into a taped hole

Finish
ZINC PLATED (ROHS COMPLIANT)

Zinc Plated is the most common fastener of plating due to its the low cost & shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. External use is not recommended if corrosion is a concern. For use in outdoor elements choose from the stainless steel range

Product
SERRATED FLANGED HEX BOLT

Size
M8

Specification
DIN 6921 / CLASS 8.8

Length / Dimension
25 mm

Thread
M8-1.25 x Fully Threaded Thread length on older stock may vary


Click here for bolt technical specifications

Click here for spanner selection for hex bolts & nuts

Click here for hobson serrated flanged hex bolt information

Click here for product finish comparison

Click here for hobson high tensile product guide

Click here for hobson anti vibration paper

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Left or Right Hand:
    Right Hand
  • Brand:
    Hobson
