Conversion Chart

Std Washer Delta Protekt M8(5/16)x13.5x2.5

NORD-LOCK - M8(5/16) (Box=200)
Stock Code:
WNHTDDM08
$3.06 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

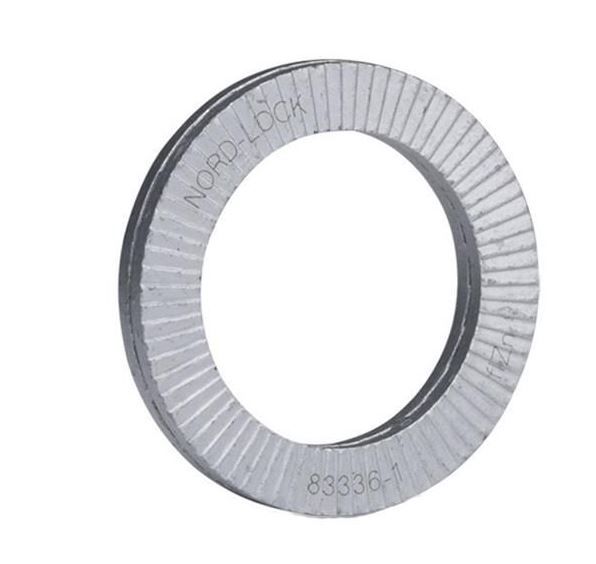

Nord - Lock Standard Washer Delta Protekt Box=200

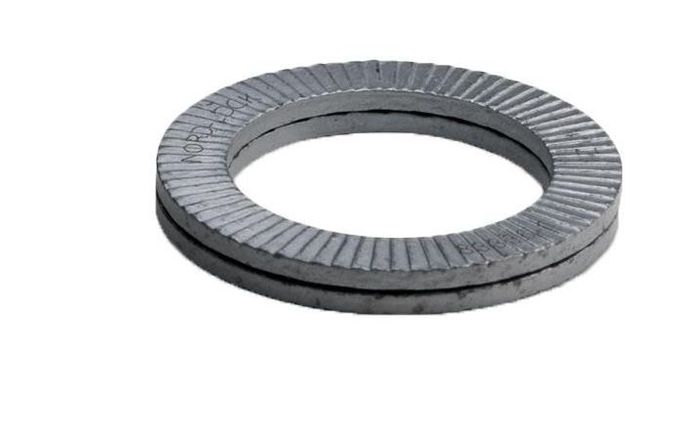

Nord-Lock® Wedge Washers secure bolts with tension instead of friction. The system cannot loosen unintentionally as it creates a wedge-effect underneath the bolt head or nut. The system comprises of a pair of wedge-lock washers with cams on one side and radial teeth on the opposite side

Advantages

Will not loosen under severe vibration or heavy dynamic loads > Reliable locking, even for joints with short clamp length > Quick and easy to install and remove > When untightening you can hear a click > High corrosion resistance with Delta Protekt® and Stainless Steel A4-70 G316 > Locking function not affected by lubrication > Reusable

Traceability - Washers are laser marked with Nord-Lock brand name, control number and type code for traceability

Finish
DELTA PROTEKT

Delta Protekt® is an excellent coating. 1,000  hours is the minimum amount of time Nord-Lock steel washers with zinc flake coating by Delta Protekt®â€¯can withstand corrosion in a salt spray test. The regular quality testing that is done as part of ensuring high-quality standards, clearly shows that the washers consistently endure even longer hours. *According to ISO 12944-6:2018, 1,000 hours in a salt spray chamber correspond to approximately 25 years in C4 environment or approximately 15 years in C5 environment.

Product
STANDARD WASHER

Size
M8(5/16)


Specification
NORD-LOCK

Length / Dimension
x13.5x2.5


Click here for hobson nord lock product guide

Click here for types of washers

Click here for washer gauge conversion chart

Click here for hobson nordlock washers user manual

Click here for hobson hardness table

Click here for hobson nordlock vibration test data

Click here for nord lock junker test principle paper

Click here for zinc flake coating delta protekt information

Click here for antivibration test paper

Click here for hobson nordlock superbolt certificate
