SKF - Taconite Seal 65 mm shaft (one side)

Labyrinth & V-ring & O-ring Complete seal
Stock Code:
TK515_SKF
$990.91 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TK 515
Taconite seal

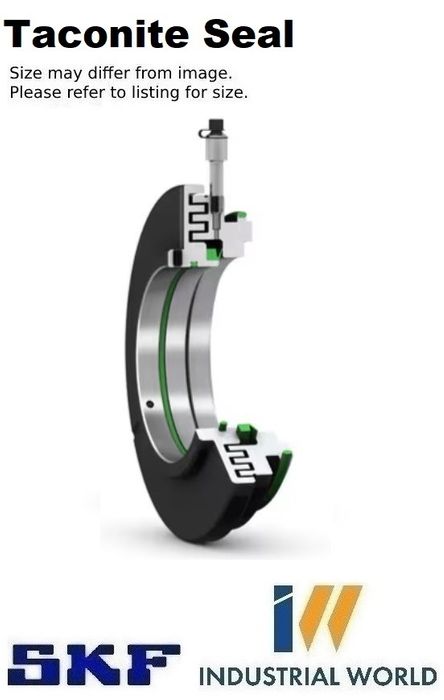

These taconite seals consist of two rings (one stationary and one rotating), which form a very narrow labyrinth between the two rings, which prevents ingress of solid and liquid contaminants, even during high-pressure washdowns. The rotating labyrinth ring carries a V-ring seal that seals against the stationary labyrinth ring. The V-ring seal blocks contaminants from entering the bearing housing and aids the purging of contamination and old grease when the seal is relubricated.

  • Excellent exclusion of contaminants
  • Improved water ingress prevention
  • Longer bearing and seal service life
  • Reduce grease consumption
  • Compact design

Dimensions

Outside diameter138 mm
Shaft diameter65 mm
Housing groove diameter95.5 mm
Width42 mm

Properties

Accessory typeHousing seal
Sealing typeTaconite
MaterialSteel with nitrile rubber elements

Logistics

Product net weight1.69 kg
eClass code23-05-17-90
UNSPSC code31171519

Click here for catalogue information

View product table

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel with silicone o-ring
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Size:
    515
  • Style:
    Seal - Taconite
