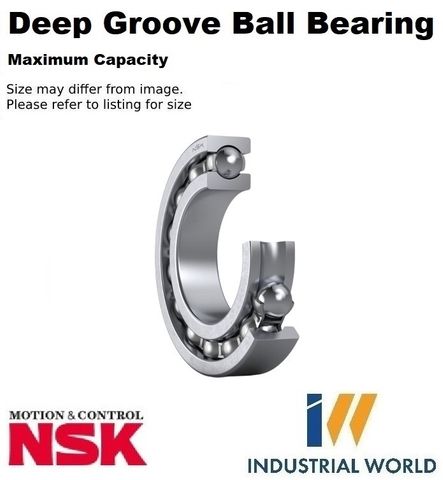

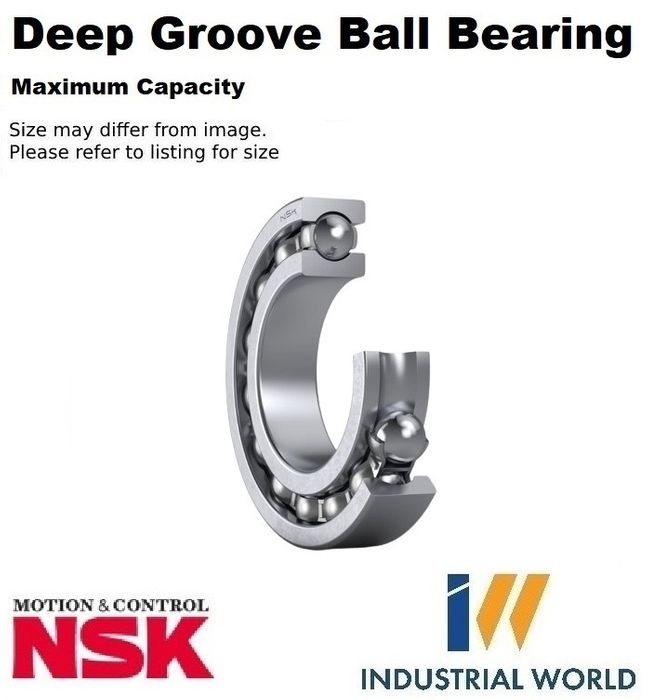

NSK - Deep Groove Ball Bearing Max Capacity

80 x 140 x 26
Stock Code:
BL216_NSK
$229.78 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

BL216 NSK

Maximum deep groove ball bearing

80.00 mm ID x 140.00 mm OD x 26.00 mm Width

  • Maximum capacity
  • Cylindrical bore
  • Standard clearance
  • Open
  • Steel cage

Filling slots in the inner and outer rings allow maximum ball bearings to contain a larger number of balls than normal deep groove ball bearings; however, the slots make them unsuitable for applications with high axial loads.
BL2 and BL3 types have boundary dimensions equal to those of Series 62 and 63 single-row deep groove ball bearings respectively.
ZZ-type shielded bearings are available in addition to open bearings.
When using these bearings, the filling slot in the outer ring should be positioned outside of the loaded zone as much as possible.

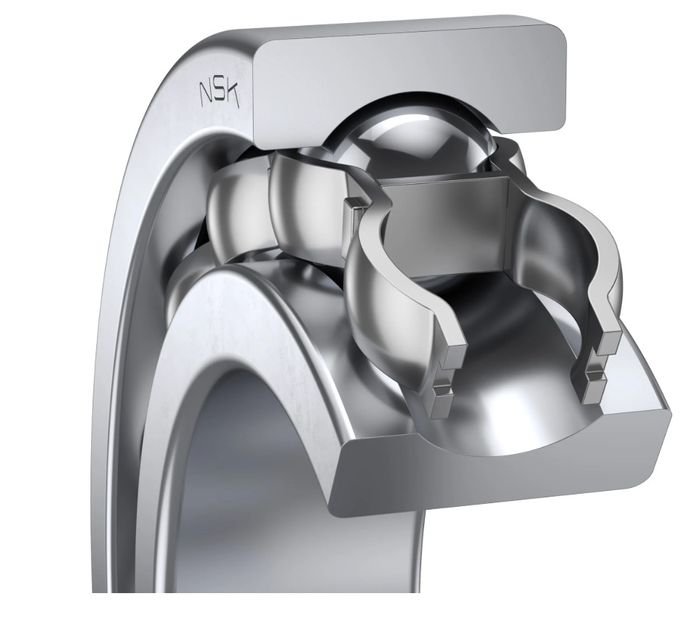

Maximum ball bearings feature pressed steel cages.

Features

  • High radial load capacity
    Maximum ball bearings can support large radial loads as they contain more balls than deep groove ball bearings.
    However, they are not suitable for axial loads due to their ball filling slots.
  • Standard dimensions
    Shared boundary dimensions (BL2/Series 62, BL3/Series 63) allow for easy replacement.

Applications

  • Transport/conveyance equipment, gearboxes in agricultural machinery

Dimensions

d80mmBore diameter
D140mmOutside diameter
B26mmWidth
r (min.)2mmChamfer dimension



Basic Load Ratings

Cr92500NBasic dynamic load rating
C0r85000NBasic static load rating



Speeds

Grease4300min-1Grease lubrication
Oil (Oil-bath)5300min-1Oil-bath lubrication

Abutment and Fillet Dimensions

da (min.)89mmDiameter of shaft abutment
Da (max.)131mmDiameter of housing abutment
db (max.)95.5mmDiameter of shaft abutment
ra (max.)2mmRadius of shaft or housing fillet

Mass

(approx.)1.61kg

Click here for catalogue information

Click here for detailed deep groove bearing information

Click here for bearing specific data

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    80 mm
  • Material:
    Chrome steel
  • Width:
    26 mm
  • Brand:
    NSK
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Open
  • Diameter Outside:
    140 mm
  • Style:
    Standard
