Button Head Socket Screw - M8x25 SS (Box=100)

ISO 7380 / 304 SS - M8-1.25 x Fully Threaded
Stock Code:
SB04PCM080025
$0.63 incl GST

Stock Locations

  • Ballarat:
    100 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

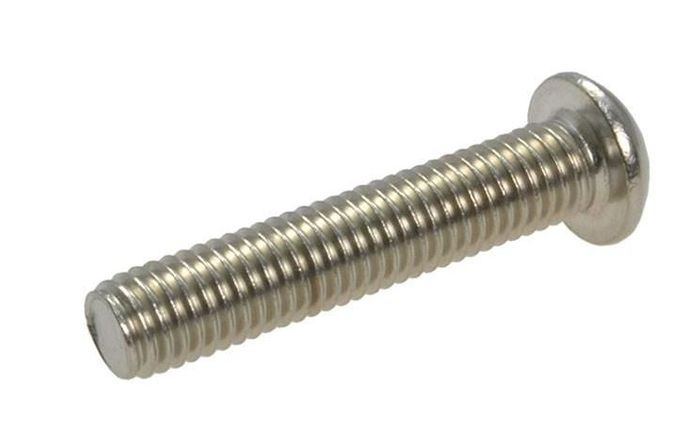

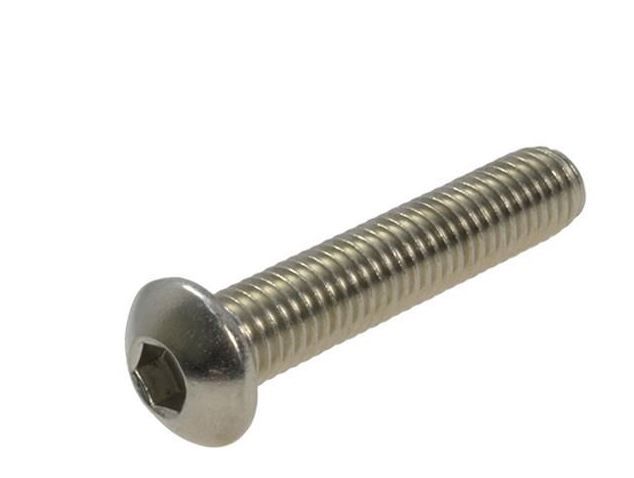

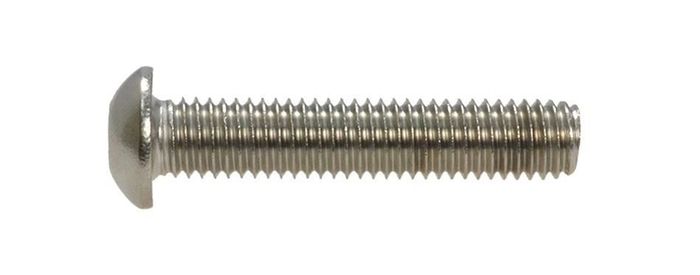

Button Head Socket Screw - M8x25 Stainless Steel (Box=100)

Button Head Socket Screws have a larger bearing surface, low profile head and are installed using an allen key. Button socket screws provide a larger bearing surface and a lower head profile than a socket head cap screw and are generally used when the material is too thin to countersink, or decorative finish is desired. Use a hex key also called an Allen wrench or hex power bit to drive a socket screw. The tensile strength isn’t as high as a socket head cap, but as a comparison they are twice the strength of a machine screw

They are fully threaded and have uniformly threads, meaning they maintain the exact same diameter throughout the entire length of the threaded section of the fastener, unlike self tapping or chipboard screws which have tapered threads

Also known as: Socket Button, Button Allen Head, Button Hex, Allan Bolt, BHSS

Finish
304 STAINLESS

Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is very practical because of its excellent corrosion protection in most environments.

Product
BUTTON HEAD SOCKET SCREW HEX

Size
M8

Specification
ISO 7380 / A2

Length / Dimension
25

Thread
M8-1.25 x Fully Threaded Thread length on older stock may vary


Click here for stainless fasteneners product guide

Click here for bolt technical specifications chart


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M8-1.25
  • Left or Right Hand:
    Right Hand
  • Material:
    Stainless Steel 304
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
  • Length:
    25 mm
