Sutton - Morse Taper BLU Shank Drill D115

14.0 mm no1 MTS DIN345 HSS
Stock Code:
SUT-D1151400
$87.14 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Morse Taper Shank Drills

Twist drill with Morse taper shank suitable for a variety of materials and industrial applications. The tang at the end of the shank is used for ejecting the drill from the socket or sleeve. The drive and alignment is derived from the taper lock.

Features

  • General purpose HSS drill
  • Suitable for materials up to 900N/mm²

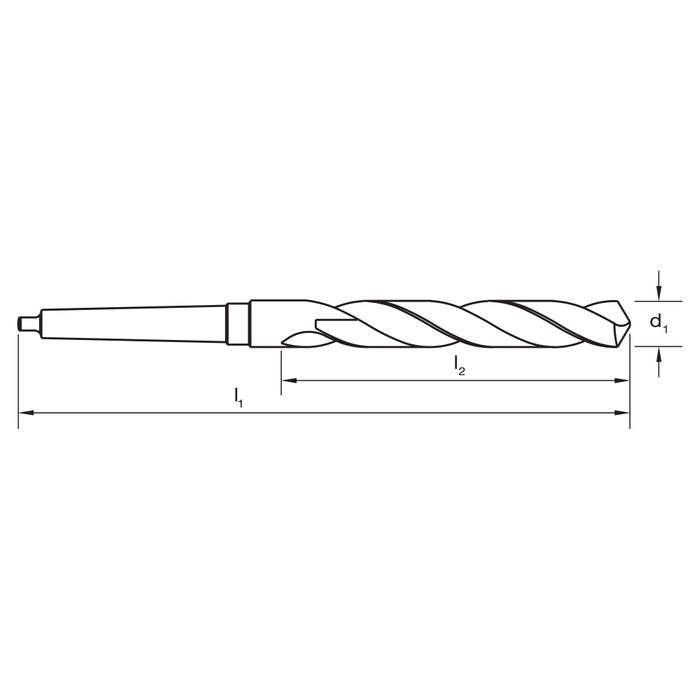

Range

  • Diameter d1 (mm) 14.00
  • Diameter d1 (inch) -
  • Length l1 (mm) 189
  • Length l2 (mm) 108
  • Diameter d2 (mm) MT#1

Specifications

  • Designation N
  • Material HSS
  • Finish Blu
  • Max Cut Depth 5XD
  • Shank Form MTS
  • Helix Angle R30
  • Point Tolerance H8
  • Point Angle 118°
  • Point Form Form A
  • No of Cutting Edges ul
  • Standard DIN345
