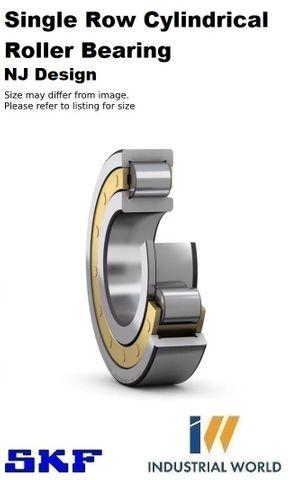

SKF - Cylindrical Roller Bearing Brass Cage

50 x 90 x 20 (NJ 210 ECM/C3)
Stock Code:
NJ210ECM-C3_SKF
$184.60 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NJ 210 ECM-C3 (C3 Clearance)
Single row cylindrical roller bearing, NJ design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Dimensions

Bore diameter50 mm
Outside diameter90 mm
Width20 mm

Performance

Basic dynamic load rating73.5 kN
Basic static load rating69.5 kN
Reference speed8 500 r/min
Limiting speed9 000 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityIn one direction
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageMachined metal
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeNone
Radial internal clearanceC3
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight0.57 kg
eClass code23-05-09-01
UNSPSC code31171505





Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50 mm
  • Width:
    20 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Brass Cage
  • Size:
    210
  • Diameter Outside:
    90 mm
  • Style:
    Fixed Outer Ring - 1 Flange Inner (NJ)
