Alemlube - Rewinda Compressed Air Hose Reel

20mm x 12m - 1/2 BSPT Inlet/Outlet
Stock Code:
AR1220CAB
$603.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
4 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

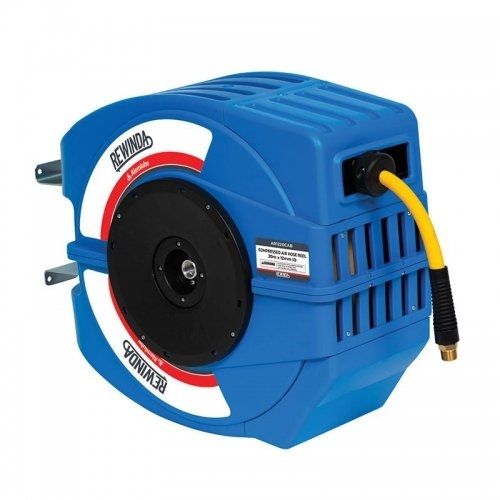

ALEMLUBE REWINDA COMPRESSED AIR HOSE REEL 20M X 12MM ID

Product Overview

  • Alemlube Rewinda compressed air hose reel 20m x 12mm ID
  • Gen3 hybrid polymer hose
  • High grade impact resistant UV stabilised covers

Features & Benefits

  • Alemlube Rewinda series industrial quality compressed air hose storage & retrieval system
  • 20m x 12mm ID
  • Highly flexible Gen3 hybrid polymer hose
  • Automatic and positive latching mechanism with speed control break system
  • The hose stops at any point to secure the hose at the desired length
  • Sliding guide mechanism ensures the hose returns evenly to the barrel assembly
  • Can be wall, floor or ceiling mounted
  • Detachable steel mounting bracket enables 180° hose reel rotation
  • High flow swivel & fluid path
  • Updated mounting brackets fits other leading brands
  • 1/2" BSPT(m) inlet hose & 1/2" BSTP(m) outlet hose connections
  • 1/2" BSPT(f) inlet valve connection on reel
  • 0.9m lead in hose
  • Maximum working pressure 300psi (20 bar)
  • Working temperature from -40°c to +80°c
  • Weight of 13kg
  • Size 580mm L x 480mm H x 270mm W

Warranty Information

2 Years

Downloads below

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    ALEMLUBE
