Conversion Chart

Button Head Socket Screw Hex- M6 x 10

ISO7380 / CLASS 012.9 M6-1.00 x Fully Threaded
Stock Code:
SBSOPCM060010
$0.26 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

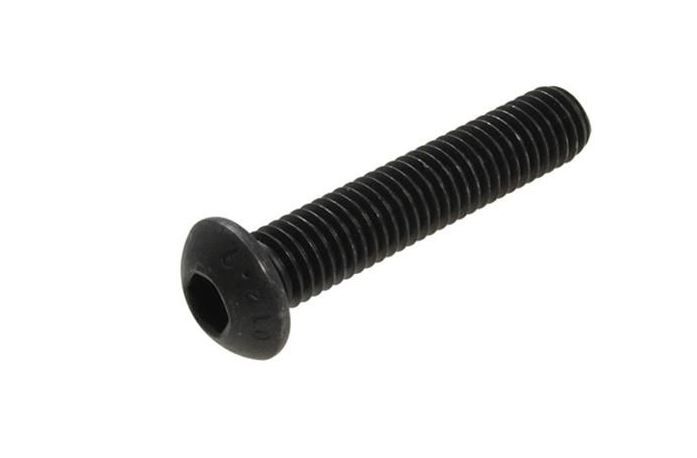

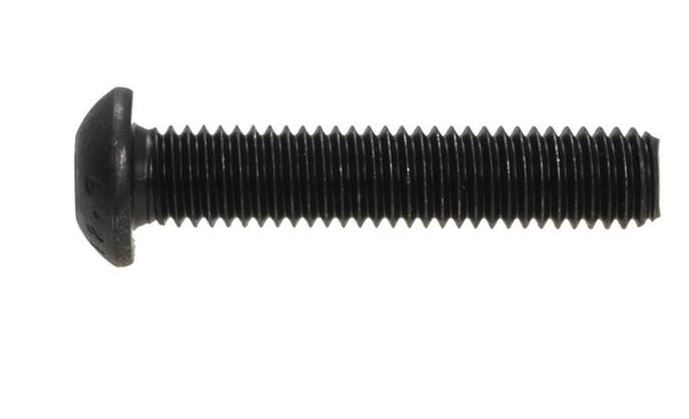

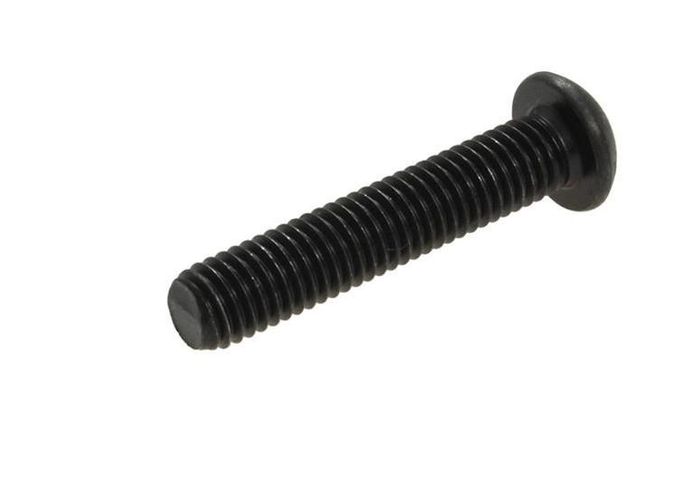

Button Head Socket Screw Hex- M6 x 10 Plain

Button Head Socket Screws have a larger bearing surface, low profile head and are installed using an allen key. Button socket screws provide a larger bearing surface and a lower head profile than a socket head cap screw and are generally used when the material is too thin to countersink, or decorative finish is desired. Use a hex key also called an Allen wrench or hex power bit to drive a socket screw. The tensile strength isn’t as high as a socket head cap, but as a comparison they are twice the strength of a machine screw

They are fully threaded and have uniformly threads, meaning they maintain the exact same diameter throughout the entire length of the threaded section of the fastener, unlike self tapping or chipboard screws which have tapered threads

Also known as: Socket Button, Button Allen Head, Button Hex, Allan Bolt, BHSS

Product

BUTTON HEAD SOCKET SCREW HEX

Finish
PLAIN

No additional coating applied. Products are supplied lightly oiled to inhibit rust in the packaging and assist with installation.

Size
M6

Specification
ISO7380 / CLASS 012.9

Length / Dimension
10

Thread
M6-1.00 x Fully ThreadedThread length on older stock may vary


Click here for bolt technical specifications chart

Click here for Hobson product finish comparison

Click here for Hobson SOKO product guide

Click here for Hobson SOKO Tightening torque

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Left or Right Hand:
    Right Hand
  • Material:
    Zinc Plated 12.9 Steel
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
  • Length:
    10 mm
