Sutton - Straight Flute Tap - L/H - Taper

Metric M8 x 1.25 HSS
Stock Code:
SUT-T3890800
$61.69 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T3890800 M8 x 1.25 Straight Flute Tap Left Hand - Taper - HSS

Sutton Straight Flute Taps - Left Hand - Taper

  • ISO Taps Metric, Straight Flute, N, Left Hand.
  • General purpose use.
  • Suitable for materials up to 1000N/mm2.
  • Through & blind holes.
  • Suitable for both hand and machine operations.
  • Depths up to approx. 1 x d1

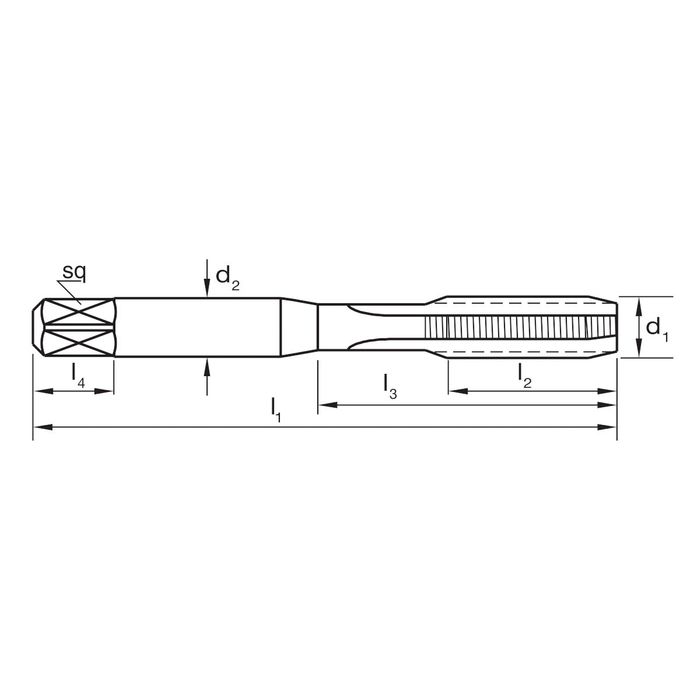

Specifications

  • Brand Sutton Tools
  • Model Number T3890800
  • Barcode Number 9311963025988
  • Pitch 1.25
  • d1 M8
  • l1 72
  • l2 22
  • l3 30
  • d2 8
  • sq 6.3
  • l4 9
  • z 4
  • drill ø6.8
  • Group Code T389
  • Designation N
  • System of Measurement ISO529
  • Thread Form ISO Metric Coarse (M)
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Lead Taper
  • Application N (for normal general purpose type materials)
  • Max Cut Depth 1xD
  • Tap Type Straight Flute
  • Nut Tolerance ISO 2 / 6H LH

Click here for sutton tools threading catalogue

Click here for sutton tools tapping drill size chart

Click here for sutton toold ISO Taps catalogue
