Sutton - Drill D176 Spotting 120-Deg 8.00mm

HSS-CO-TIN 120-DEG DIN1897 8.0MM
Stock Code:
SUT-D1760800
$35.40 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

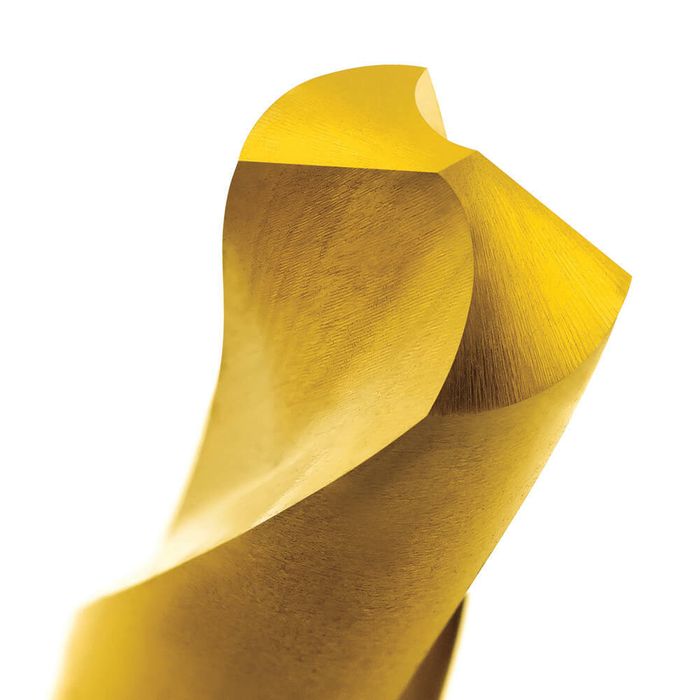

Sutton D1760800 8mm 120° Spotting Drill Bit DIN1897 - Cobalt Steel - TiN

Sutton Tools 120° Spot Drill Bits

  • Precision drill for machine use
  • Refer to Carbide Drill section for VHM Spotting Drills

Features

  • Spotting Drill for “seat” position accuracy
  • 90° offers hole chamfering & spotting with the one tool
  • 120° for spotting, matching a typical drill point
  • Only drill to the depth of the point

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt
  • Finish: TiN
  • Shank Form: A
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h9
  • Point Type: 120°
  • Cutting Edges: ul
  • Standard: DIN 1897

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Specifications

  • Brand Sutton Tools
  • Model Number D1760800
  • Barcode Number 9311963423654

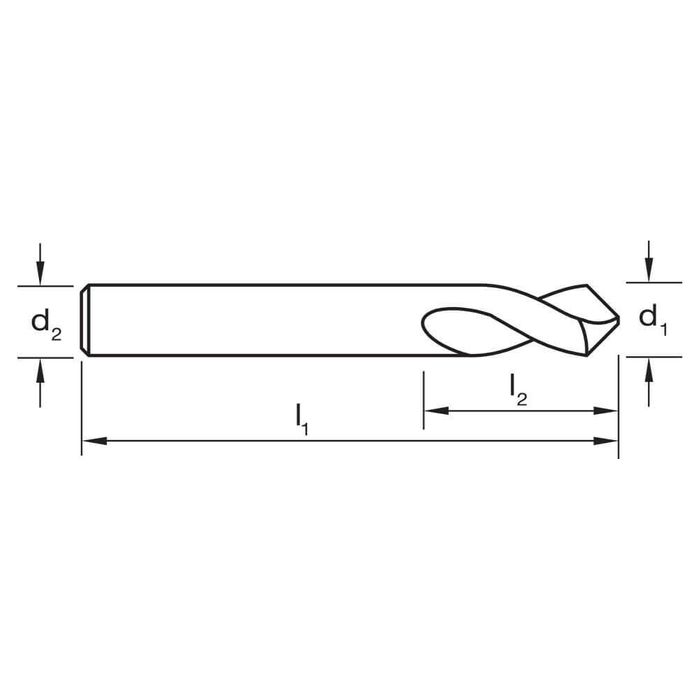

  • Thread Diameter (mm) 8
  • Overall Length (mm) 79
  • Shank (mm) 8
  • Flute Length (mm) 29
  • Group Code D176
  • Type Spotting Drill Bit
  • System of MeasurementDIN 1897,Metric
  • Material High Speed Steel Cobalt (HSS Co5%)
  • FinishTitanium Nitride (TiN)
  • Shank Form A
  • Point Angle 120
  • Shank Tolerance h9
  • Point Tolerance h8
